Minimum Order Quantity: 1 Unit
Certification: ISO/CE/SGS Certification
Warranty Period: 13 Months
Packaging Method: Plywood Wooden Case Packaging
Payment Terms: Telegraphic Transfer (T/T), Western Union, Credit Card
Trade Terms: EX Works (EXW), Free On Board (FOB), Delivered Duty Paid (DDP), Cost, Insurance and Freight (CIF), Cost and Freight (CFR)
Delivery Cycle: 10-15 Working Days After Receiving the Deposit
The external hydrostatic testing machine for cylinders is a special testing equipment designed and manufactured in strict accordance with relevant standards such as GB/T15385 “Cylinder Burst Test Method”, SO11439 “High-Pressure Cylinders for Automotive Natural Gas” and GB/T9251-1997 “Hydrostatic Test Method for Cylinders”. The equipment supports two control modes: manual and automatic. It is mainly used for cylinder burst pressure testing, capable of accurately completing the entire process of cylinder hydrostatic testing and providing a reliable testing basis for cylinder safety performance.
Test Pressure: 0-40MPa
Test Range: Cylinder Outer Diameter: φ219 – φ426mm; Cylinder Length: 600 – 2000mm
Working Air Source Pressure: 0.6-0.8MPa
Working Air Source Flow Rate: ≥1m³/min
External Power Supply Voltage: 220V/50Hz
Control Mode: Industrial Computer Control
Adopting pneumatic-hydraulic booster equipment, it can accurately adjust the test pressure, support startup under load, and realize multi-stage pressure boosting and pressure maintaining functions to meet different test requirements.
Equipped with comprehensive safety protection design, it fully ensures the safety of operators and can accurately record the instantaneous peak pressure when the cylinder bursts.
It can flexibly control the pressure boosting speed during the test to ensure that the test pressure rises steadily to the burst pressure, guaranteeing the accuracy and stability of test data.
The automatic control model is equipped with an excellent human-machine interface, supporting manual input of test parameters and test product information. The industrial computer can automatically store relevant data and generate reports, simultaneously recording key curves and information such as pressure-time during the test, realizing automated and data-based management of the test process.

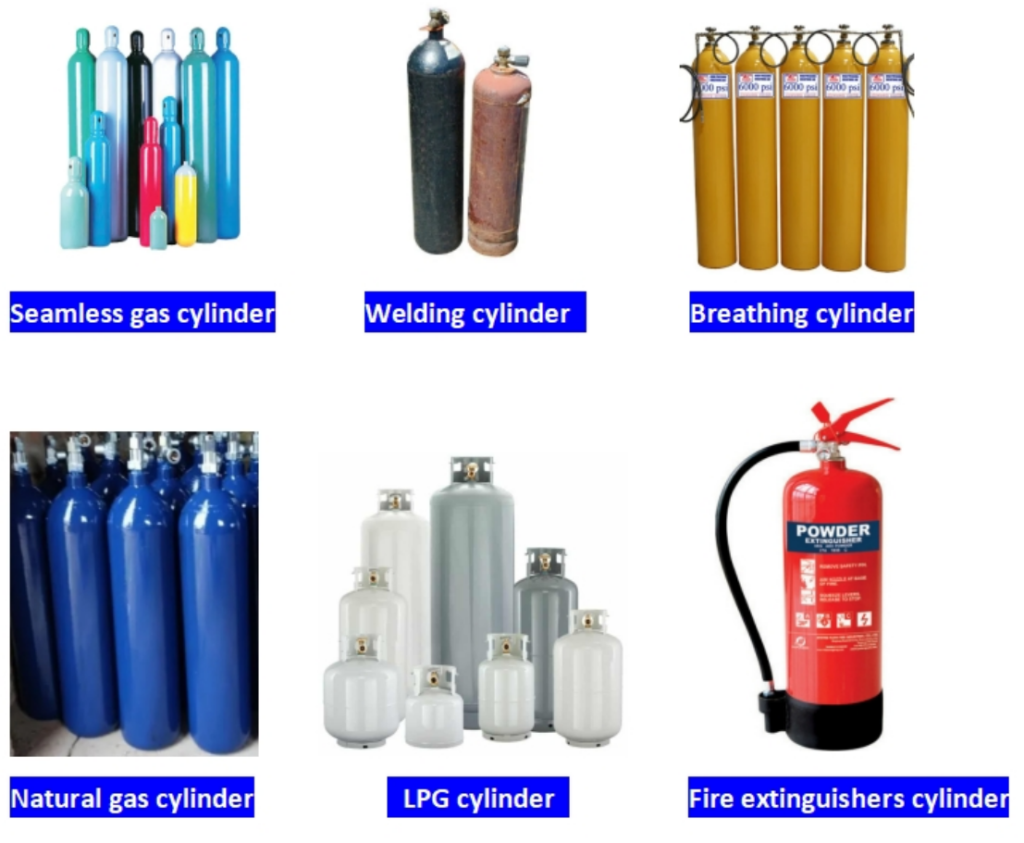

This equipment is professionally used in industries such as aviation, automobile transportation, gas storage and fire-fighting equipment. It is mainly used for burst pressure testing of various cylinders, effectively detecting the safety performance of cylinders under high-pressure environment, and providing key technical support for cylinder production, inspection and compliant use.
