Hydraulic pressure burst testing machine

Description

What is a Hydrostatic Burst Pressure Test Machine?

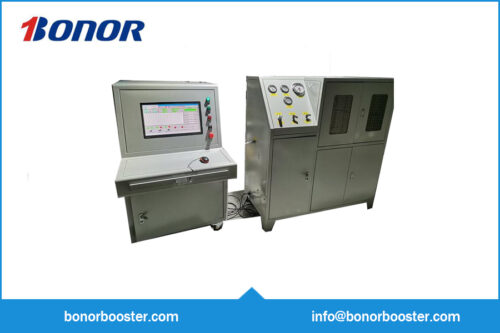

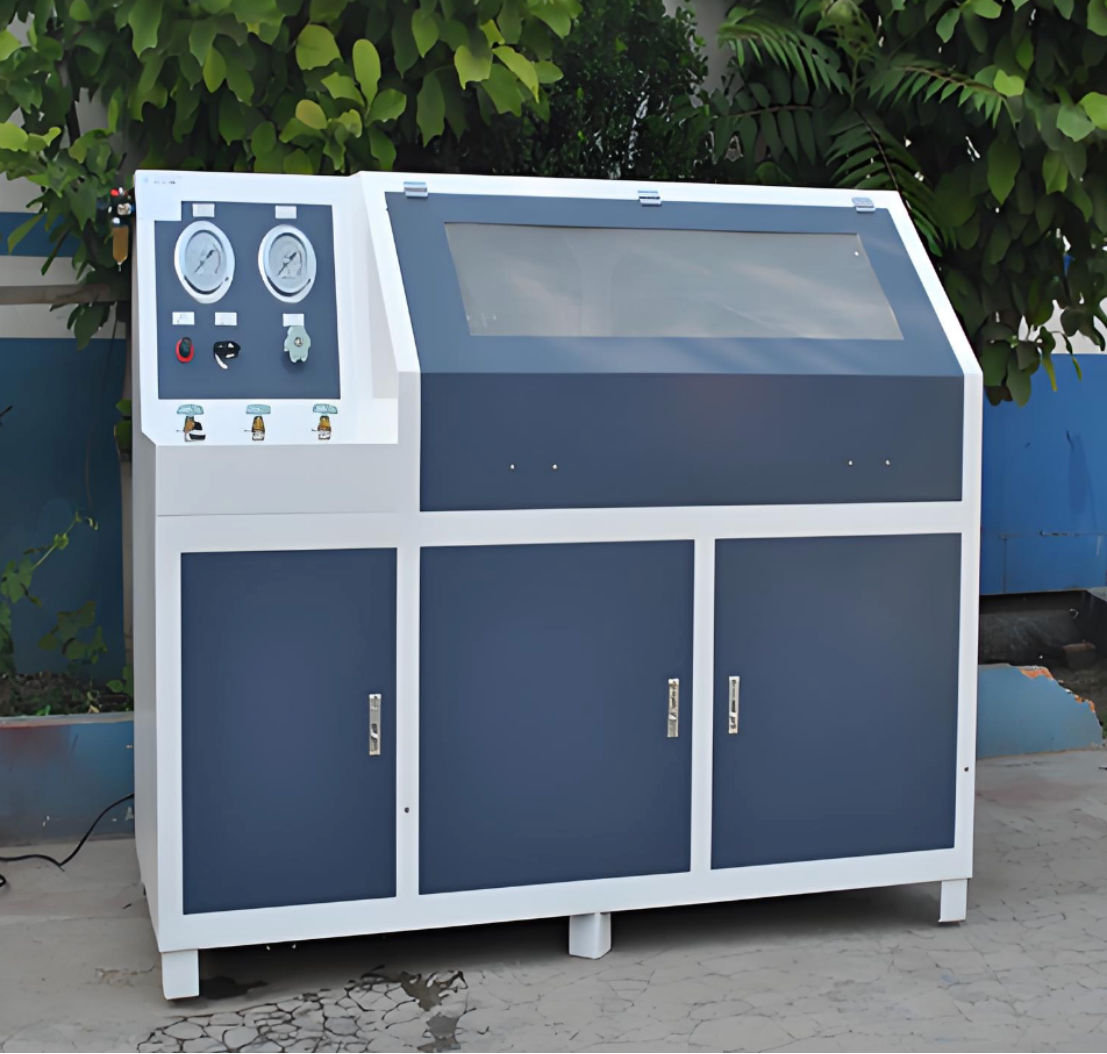

This equipment is a professional fluid pressure testing device that integrates hydrostatic pressure testing, burst pressure testing, and leak testing. It is mainly used to verify the structural strength and sealing performance of various pressure-bearing components and pressure vessels.

Based on the pneumatic boosting principle, it is equipped with a digital display control system and an enclosed protective cabinet. It combines the precision of automated control with the safety of manual emergency operation, making it a core device for product quality verification in the automotive, construction machinery, fire protection, energy, and other industries.

Core Advantages

• Precision Control & Monitoring: Digital display + dual pressure gauges for real-time pressure monitoring; test data is traceable, with pressure control accuracy ≤ ±0.5% FS.
• Safety Protection: Integrated pressure relief valve and enclosed cabinet effectively block the risk of high-pressure medium leakage, ensuring operator safety.
• Flexible Adaptability: Supports multiple test media such as water and hydraulic oil, adapting to workpieces of different materials and specifications.
• Easy Mobility: Equipped with lockable universal casters at the bottom, enabling quick transfer between workshop stations to improve testing efficiency.

Technical Parameters (Typical Industry Configuration)

Parameter Item	Typical Value
Maximum Test Pressure	0~400MPa (customizable on request)
Test Medium	Water, hydraulic oil, emulsion, etc.
Control Mode	Semi-automatic (digital display + manual buttons)
Pressure Display Accuracy	±0.1MPa
Pressure Holding Time Range	0~9999s (freely adjustable)
Driving Air Pressure	0.4~0.8MPa (industrial compressed air)
Equipment Dimensions (approx.)	800×600×1200mm (L × W × H)
Equipment Weight (approx.)	150~200kg
Protection Grade	IP54 (dust and water resistant)

Working Principle

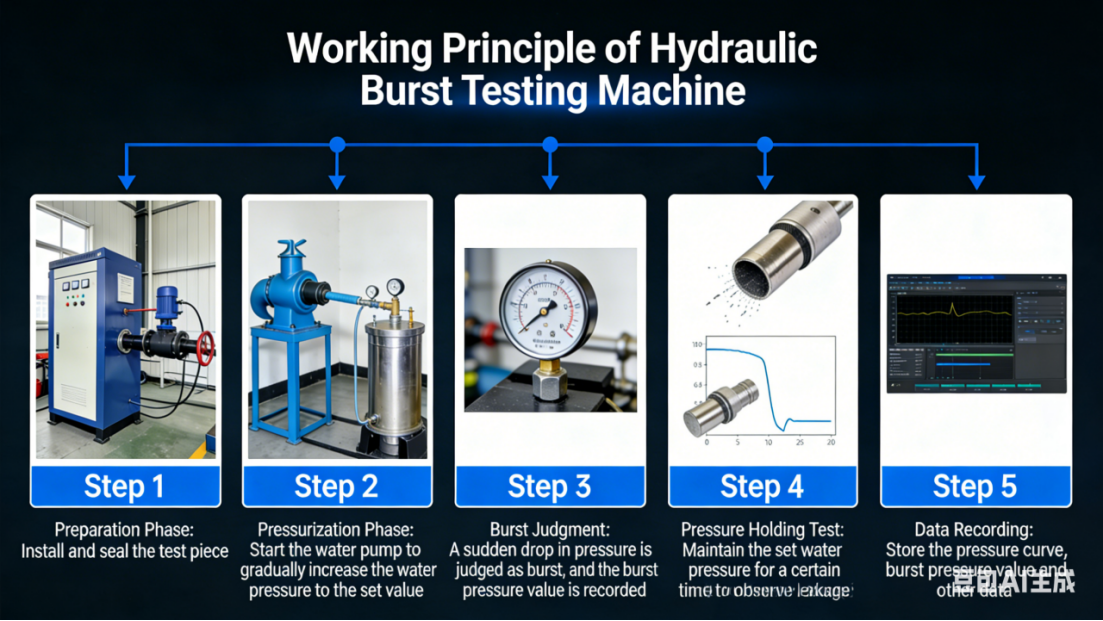

This equipment is based on the reciprocating principle of a pneumatic booster pump, achieving high-pressure output of low-pressure media through pneumatic drive. The core process is as follows:

1. Power Connection: Connect 0.4~0.8MPa industrial compressed air to the equipment’s drive port, and adjust the air pressure regulator to preset the test pressure.
2. Medium Boosting: The pneumatic booster pump draws in and compresses low-pressure test medium (e.g., water, hydraulic oil) to raise its pressure to the set value.
3. Automatic Pressure Holding: When the pressure reaches the preset value, the equipment automatically stops boosting and enters the pressure-holding state, monitoring pressure decay in real time.
4. Test Evaluation: If the pressure decay during the holding period is within the allowable range, the hydrostatic/leak test is judged as qualified; for burst testing, continue boosting until the workpiece ruptures, and the pressure gauge automatically records the burst pressure value.
5. Safe Pressure Relief: After the test, slowly release residual pressure in the pipeline via the manual pressure relief valve to avoid pressure shock.

Wide Range of Applications

1. Automotive Industry

• Pressure resistance and burst performance testing of brake lines, fuel lines, air conditioning hoses, and steering oil pipes
• Sealing performance verification of automotive brake pumps, cylinder blocks, and other pressure-bearing components

2. Construction Machinery Industry

• Strength and sealing testing of hydraulic hoses, high-pressure oil pipes, and hydraulic valve groups
• Pressure resistance verification of hydraulic cylinders, accumulators, and other pressure vessels

3. Fire Protection Industry

• Pressure resistance and burst testing of fire hoses, fire extinguisher cylinders, and fire fittings
• Charging pressure verification of fire gas cylinders

4. Energy and Chemical Industry

• Pressure resistance and leak testing of oil pipelines, valves, and pipe joints
• Pressure performance testing of gas storage tanks, pressure transmitters, and other equipment

5. General Manufacturing

• Pressure calibration of various metal/non-metal pipes, joints, and pressure gauges
• Sealing performance testing of precision components such as liquid cold plates and instruments
