Description
The hydraulic tube expansion system is a specialized equipment for the manufacture and maintenance of boilers, heat exchangers, etc. It can reliably expand heat exchange tubes of various specifications and materials, and is especially suitable for thick tube sheets and large-diameter tube heat exchangers.
Heat exchangers produced by this rapid expansion technology have the advantages of uniform expansion, safety and reliability, long service life and low failure rate. Moreover, it features simple operation and fast expansion speed, which can greatly shorten the manufacturing and maintenance cycles, reduce the shutdown loss of chemical plants, and achieve significant economic benefits.
Heat Exchanger Hydraulic Tube Expansion Machine Technical Parameters
Rated Expansion Pressure: 3000 bar
Maximum Expansion Pressure: 3500 bar
Expansion Speed: 5-10 times/min
Working Medium: Pure water
High-pressure pipe burst pressure: 280/700 MPa
Minimum Expansion Hole Diameter: >10 mm
Driving Air Source: 280/700 MPa
Hydraulic Tube Expander Operating Principle
The High-Pressure Hydraulic Tube Expander, is an innovative machine that differs from traditional mechanical tube expanders. It uses water or hydraulic oil as the working medium and hydraulic power for tube expansion. The machine applies uniform hydraulic pressure to the inner surface of the tube, causing plastic deformation to achieve secure connections between the tube and fins, as well as the tube and tube sheet. This expansion process is also referred to as flexible tube expansion.

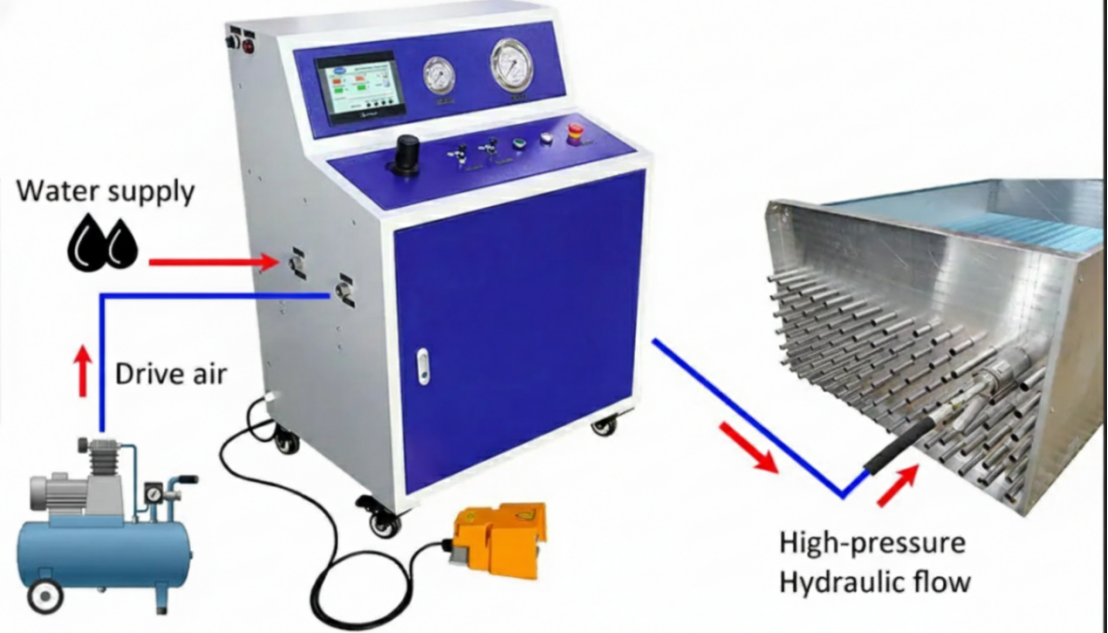

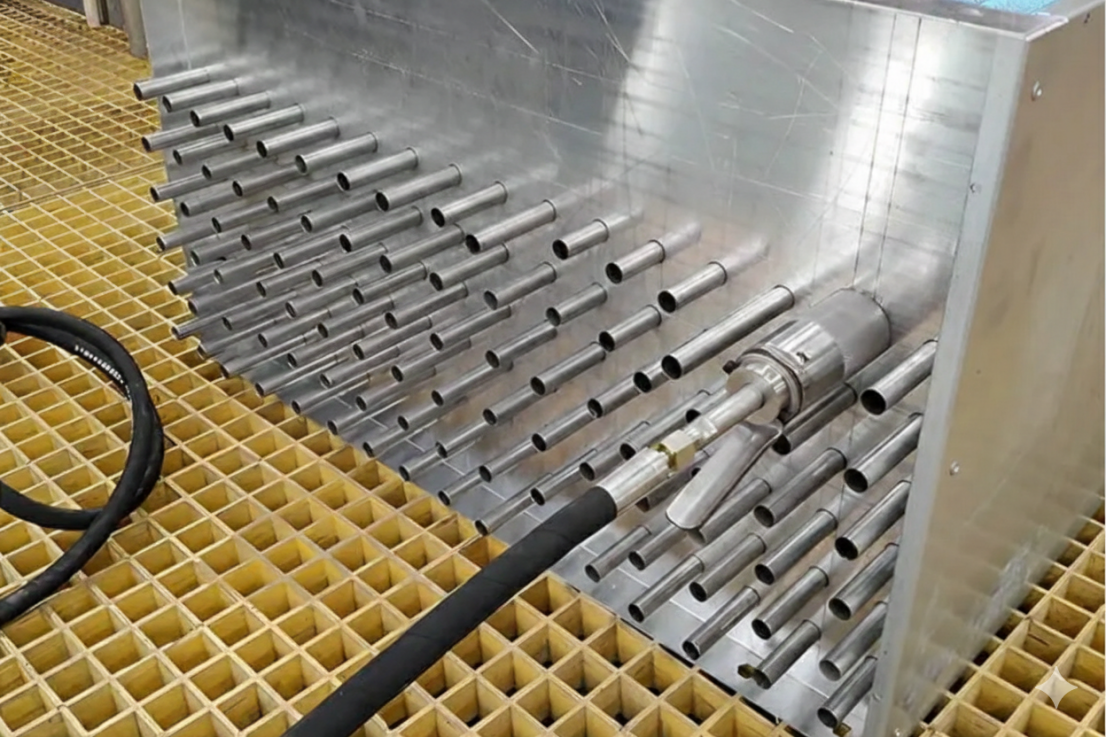

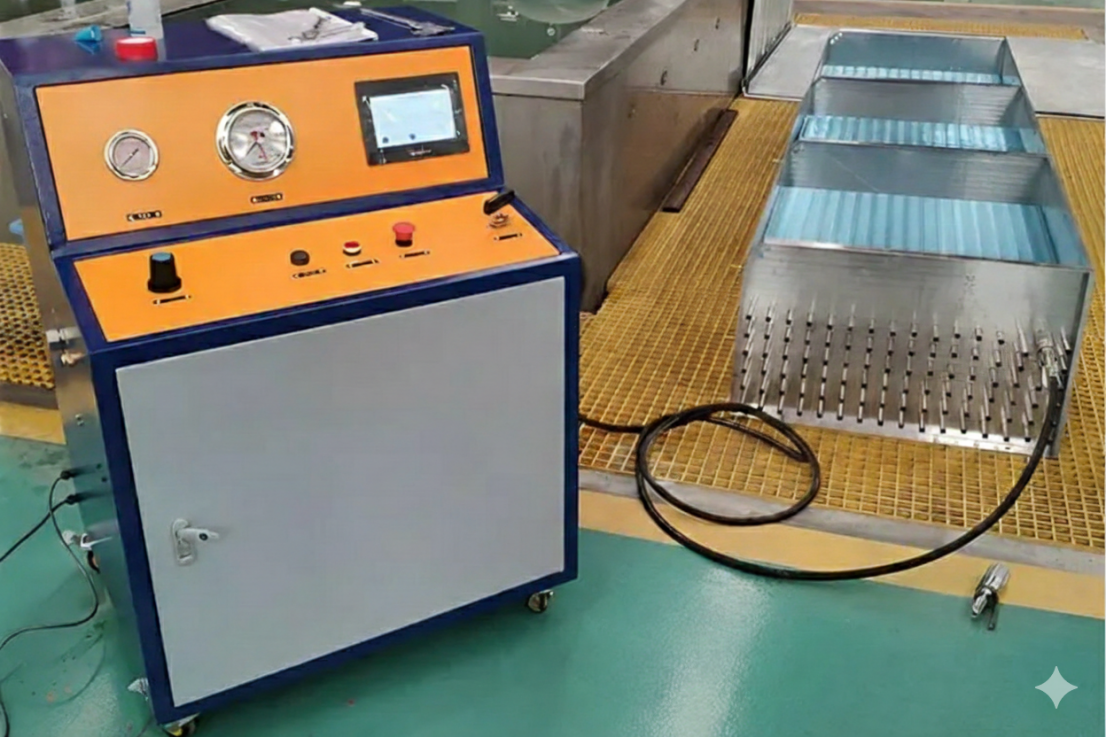

The High-Pressure Tube Expanding Machine uses compressed air as its power source and consists of two main components: a hydraulic power console and collet tooling. First, two collets are used to securely block and seal both ends of the tube to be expanded. The machine then generates high-pressure hydraulic flow, which is injected into the tube, completing the tube-to-fins expansion joint. Simply set parameters such as expansion pressure and duration on the touchscreen, and the entire expansion process will be automatically carried out by the PLC module.
Product Features of Hydraulic Tube Expander
- Adjustable Pressure-Holding Time: Set the duration as needed to ensure expansion quality; fast pressure boosting and releasing double the expansion efficiency.
- Full-Thickness One-Time Expansion: 25-150mm thick tube sheets can be uniformly expanded in one operation without multiple steps.
- Multi-Scenario Adaptability: Suitable for full-thickness expansion of intermediate tube sheets with any depth and multi-tube-sheet heat exchangers, boasting wide applicability.
- Low Residual Stress: Effectively reduces the risk of crevice corrosion and improves equipment operation stability.
- No Axial Elongation: Only slight contraction occurs, helping reduce equipment operation noise.
- Clean and Pollution-Free: Supports weld-before-expansion process, and the expansion effect is not affected by welding.
- Easy Operation: The edge of heat exchangers with channel boxes can be directly expanded, eliminating additional procedures.
- High Efficiency and Labor-Saving: Single-person continuous operation, expanding 5-7 tube heads per minute, with remarkable economic benefits
.
Applicable Scenarios of Hydraulic Tube Expander
Power plant feedwater heaters, natural gas plant tubular reactors, petrochemical plant heat exchangers, etc.
