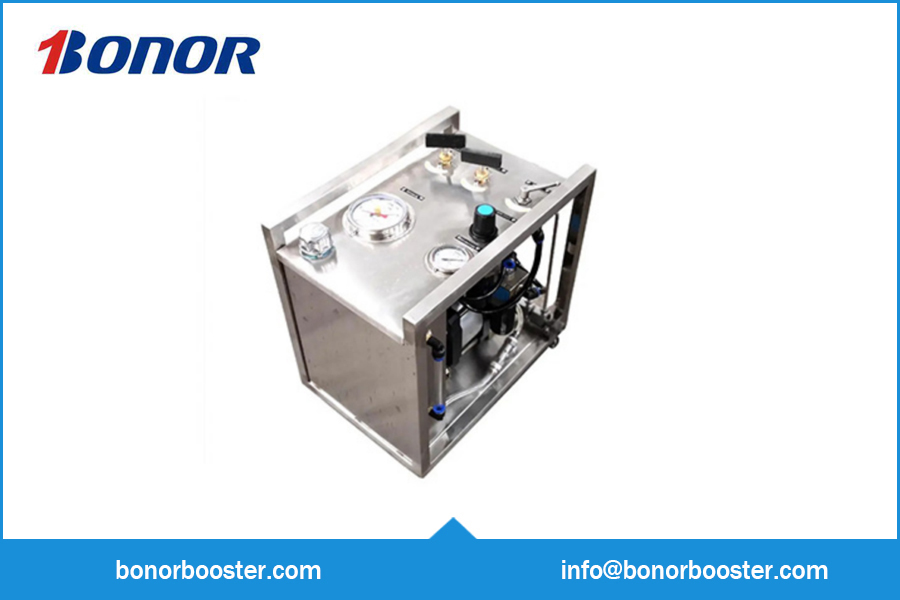

The Pneumatic Emulsion Pump Station is a multi-industry high-pressure operation equipment based on pneumatic drive technology. It integrates portability, safety and high reliability, and is widely suitable for complex working conditions in oil, chemical, coal mining and other fields.
With a compact and small body and light weight, the equipment can be flexibly carried by operators, adapting to narrow operation points such as underground and ground. It has strong power, with a maximum liquid output pressure exceeding 31.5MPa, compatible with emulsion, water and other media. It features high stability, long service life, no frequent maintenance required for daily operation, and can efficiently meet the needs of various high-pressure operations.
Compact Size, Space-Saving: Adopting a compact design, no additional large-area placement space is required, suitable for various narrow operation scenarios such as underground and ground.
Lightweight, Easy to Move: Light overall weight allows operators to carry and move it easily, flexibly adapting to the needs of different operation points.
Adequate Output Pressure: The maximum liquid output pressure can exceed 31.5MPa, which can efficiently meet the requirements of various high-pressure operation scenarios.
Wide Application Range, High Reliability: Compatible with working media such as emulsion and water, adapting to the needs of multi-industry operations; high equipment stability, long service life, and more worry-free daily operation.
Safe Operation, Suitable for Hazardous Scenarios: Adopting pneumatic drive mode, there is no electric arc or spark during operation, and it can be safely used in hazardous locations such as coal mines and oil-gas fields.
Easy Maintenance, Cost Reduction: With a small number of components and seals, simple structure, easy disassembly and maintenance, it greatly saves workers’ maintenance time and subsequent maintenance costs.
Oil Exploration and Processing: Suitable for global oil and gas field operations, used to quantitatively inject chemicals into oil wells, gas wells and pipelines to solve blockage and freezing problems and restore production capacity.
Chemical Production: Quantitatively deliver reaction raw materials to high-pressure reactors, adapting to diverse working condition requirements.
Underground Applications:
Temporary support during underground roadway repair;
Operation in the open-off cut of underground working faces;
Advance support for underground excavation faces;
Replacement or reinforcement support when replacing underground beams and legs;
Pressure column operation for small slope hoisting winches underground;
Coal seam water injection in underground working faces;
Used for rerailing derailed large underground equipment and supports with single props or oil cylinders.
Ground Applications:
Maintenance of ground supports, oil cylinders and other equipment;
Other scenarios requiring temporary support or bracing.
This product has the advantages of small size, light weight, high output pressure and wide application range, and can flexibly adapt to various coal mine operation scenarios.
