Description

一、Application

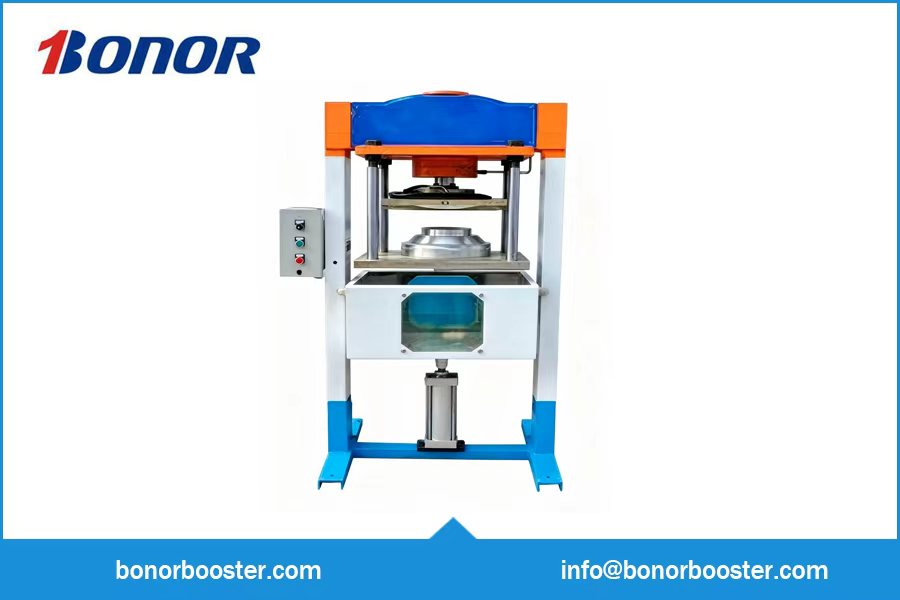

This machine is developed for hydrostatic strength test of ball valve bodies. It is equipped with automatic clamping fixture to clamp test samples automatically. Applicable size range: DN10 – DN200.

The system adopts automatic control. The pressure-time curve can be generated automatically by computer. All test data can be displayed in real time, saved in Excel file, retrieved and printed. Regular pressure testing helps detect potential defects of ball valves, enabling timely maintenance or replacement to avoid safety incidents and production losses caused by valve quality failures.



二、Equipment Features

  1. Equipped with Simatech air-driven automatic gas booster pump, the output pressure is adjustable and controllable.
  2. Advanced technology & rational structural design, compact size, light weight and attractive appearance.
  3. All pressure-bearing components adopt standard parts of internationally renowned brands without welded connections. Easy to disassemble, high safety factor, long service life and convenient maintenance.
  4. Two control modes optional: manual control or computer automatic control.

三、 Technical Parameters

  1. Driving air pressure range: 0.1–0.69 MPa
  2. Air consumption: 1 m³/min
  3. Test pressure range: 0–16 MPa; corresponding pressure specification can be selected according to customer requirements.
  4. Working medium: water, hydraulic oil, emulsion
  5. Optional accessory: data acquisition system
