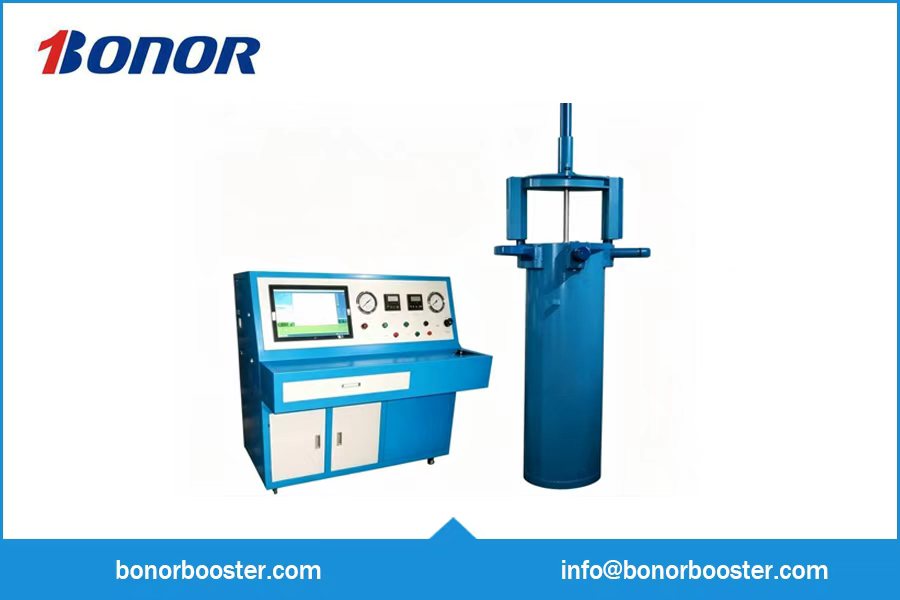

deep-sea simulated hydraulic testing machine

Description

1. Application Scope

Bonor (Jinan) independently developed deep-sea simulated hydraulic testing machine is capable of deep-sea simulation experiments with simulated water depth from 0 to 12000 m (corresponding pressure range: 0–120 MPa). It performs deep-sea high-pressure deformation failure tests and high-pressure fatigue tests. Users are allowed to set parameters including pressure rise time, pressure rise rate, holding pressure range, holding time as well as upper and lower limits of test pressure. This machine is widely applied to hydraulic simulation tests for underwater optical cables, subsea robots, deep-sea buoys, underwater lamps, sensors, deep-sea ROVs and other products. It serves as an ideal testing solution for research institutions and industrial manufacturers.

2. Equipment Composition

Equipped with a high-pressure automatic pressure vessel for placing test samples into the tank chamber.
A pressure simulation control unit is configured to simulate deep-sea external hydraulic pressure for specimen external pressure tests.
The tank cover opening device supports both manual and automatic modes to realize automatic opening and closing of the pressure vessel.

3. Equipment Features

Dual opening modes (manual & automatic) are available for pressure vessel opening and closing operations.
Test pressure is adjustable automatically to realize automatic simulation and control of water pressure for automatic pressure testing of products.
Optional control modules for water depth, temperature, dissolved oxygen, pH value and other environmental parameters.

4. Technical Specifications

Inner diameter of pressure vessel: φ50 mm ~ φ3000 mm
Vessel length: 100 mm ~ 12 m
Simulated water depth: 0–12000 m, covering pressure simulation tests for all sea areas
Test medium: clean water, seawater, etc.
Data acquisition system can be configured according to customers’ customized requirements

Related Products

	Marine Environment Simulation Tester This tester accurately simulates multiple marine environmental parameters including temperature, salinity, pH value and dissolved oxygen to fully restore actual seabed service conditions. It supports corrosion resistance testing, pressure resistance testing and durability aging testing for specimens and instruments, verifying the operational stability and reliability of various underwater equipment in real deep-sea environments. Click to view full information of Bonor Marine Environment Simulation Tester for more details.

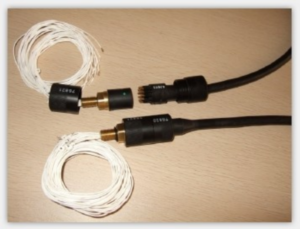

	Deep-water Underwater Connectors Adopting imported connector cores, these connectors are applied for signal and communication transmission between underwater test specimens and external systems. They can withstand the high-pressure environment at a water depth of 12,000 meters, featuring excellent performance of low temperature resistance, high pressure resistance and seawater corrosion resistance. Custom pin configurations ranging from 1 pin to 32 pins are available for selection.

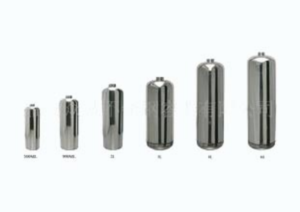

	Underwater Pressure-resistant Junction Housings These housings are designed for underwater wiring and underwater communication connection. Available materials include 316L stainless steel, titanium alloy and high-pressure resistant fiber, with a maximum withstand water pressure for 10,000-meter deep sea. Non-standard customization is supported according to customers’ actual working conditions. Various sensors such as water pressure sensors, temperature sensors and salinity sensors can be installed inside the housing to collect underwater environmental data. Meanwhile, the housings can protect precision electronic components underwater, applicable to both fresh water and seawater environments. Subsea Pipeline Collapse Test System The collapse testing machine for subsea pipelines, umbilical cables and subsea communication optical cables works under simulated deep-sea conditions of 1~10000 m water depth, with pressure ranging from 0 to 100.0 MPa and temperature controlled between -2℃ and 30℃. It applies external hydrostatic pressure on subsea pipelines for collapse tests, and test results can be recorded and exported through dedicated testing software.

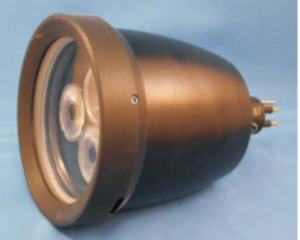

	Deep-sea Waterproof Underwater Camera This underwater camera integrates a high-definition camera module together with high-performance low-voltage lighting sources into an integrated unit, applied to underwater monitoring and underwater exploration tasks. It is widely adopted in seabed mineral exploitation, deep-sea salvage, underwater biological research, marine environmental survey, marine ecological monitoring and national defense military projects, with a maximum withstand water depth of 10,000 meters.
