Description

一、 Application Scope

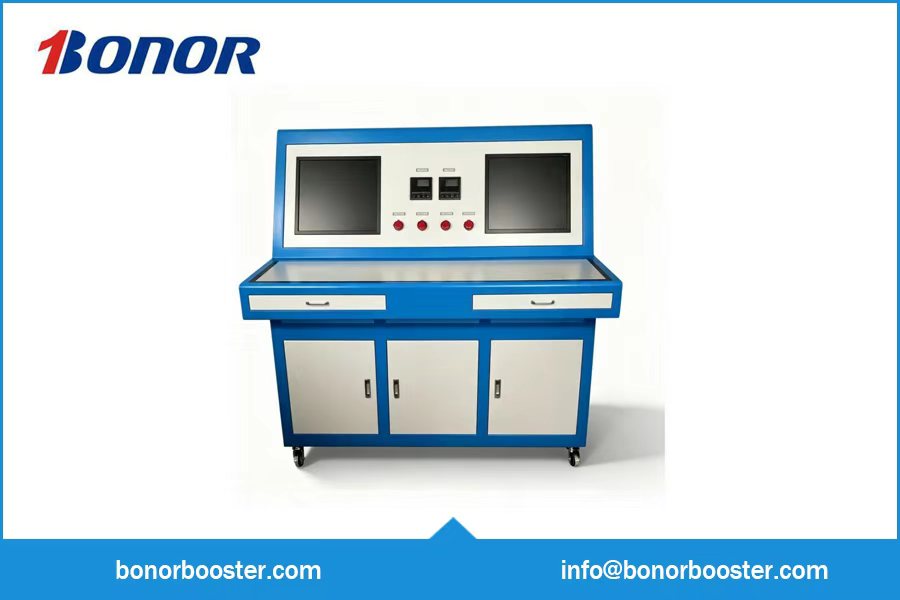

The fire cylinder valve test machine manufactured by Jinan Bonor is designed for hydrostatic pressure testing of fire cylinder valves. The standard test pressure range is 0~21 MPa, and customized pressure ranges are available upon request. Users can select computer control mode, manual operation mode, or both modes combined. The equipment is widely applied in manufacturing plants, quality inspection institutes, research institutes and universities for production inspection and R&D of various fire cylinder valves.

Applicable standards:

  • JB6904-93 Inspection and Test for Gas Cylinder Valves
  • EN ISO 14246 Transportable gas cylinders — Cylinder valves — Manufacturing tests and inspections

二、 Control System

The control system consists of two layers: upper computer and lower computer.

  • The upper computer processes graphic display, data calculation and data management, with independent control units to realize modular control.
  • The lower computer drives the hydraulic system to reach the target pressure according to instructions from the upper computer. It delivers high pressure control accuracy, stable pressure holding performance and real-time automatic pressure compensation. It also supports automatic data saving when power cuts off and test resumption after power recovery, which guarantees the continuity of testing work.

三、Equipment Features

  1. Equipped with Bonor pneumatic hydraulic pump, the output pressure can be adjusted and controlled conveniently and precisely.
  2. Adopting advanced technology and reasonable structural design, the machine features compact size, light weight and elegant appearance.
  3. All pressure-bearing components are standard parts sourced from world-renowned brands without welded joints, which allows easy disassembly, high safety factor, long service life and convenient maintenance.
  4. User-friendly design and simple operation help operators get familiar with the machine quickly and improve working efficiency. Safety is highly prioritized during design and manufacturing, with complete protective measures installed to safeguard both operators and equipment.

四、Technical Parameters

  1. Driving air pressure range: 0.1–0.69 MPa; output pressure is proportional to driving air pressure.
  2. Air consumption: 1.6 Nm³/min
  3. Test pressure range: 0–21 MPa, customized pressure range is available according to customer requirements.
  4. Working medium: Compressed air, nitrogen or clean water
  5. Custom Bonor data acquisition software can be selected upon customers’ requests.
