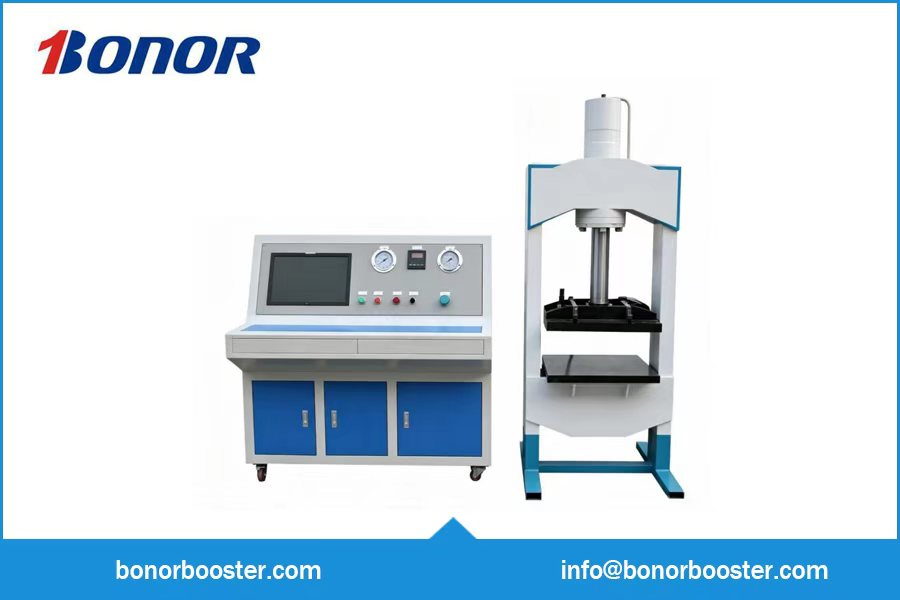

Fire Extinguisher Cylinder Flattening Test Machine

The Fire Extinguisher Cylinder Flattening Test Machine is built for pressure and burst testing of firefighting equipment. The test sequence is stored as a recipe, so one bench can serve several cylinder sizes and markets.

Send Inquiry

Description

1. Application Scope

Developed by Jinan Bonor Machinery Co., Ltd., this flattening tester is designed for flattening tests of fire extinguisher cylinders, and also applicable to steel cylinder and gas cylinder flattening inspection. It complies with GB4351.1-2005 Portable Fire Extinguishers and GB/T4351-2005 Part 3: Inspection Rules. Adopting automatic hydraulic technology to compress test specimens, the machine supports automatic pressure loading, preset pressure holding, manual/automatic return to home position. Different flattening dies are equipped for various cylinder models, covering portable and trolley-type fire extinguishers. Real-time pressure monitoring and reading display provide accurate test data.

2. Technical Parameters

  • Max test load: 1000 kg
  • Flattening die specification: Radius 12.5 mm, thickness 25 mm, width 250 mm, quantity: 2 pcs
  • Test speed: 300 mm/min
  • Stroke (excluding fixture): 300 mm
  • Driving system: Hydraulic power unit with hydraulic cylinder
  • Flattening duration: 30 ~ 60 s
  • Power supply: AC380V / 50Hz; Power rating: 0.75 kW
  • Overall dimension: L600mm × W600mm × H1750mm

3. Equipment Features

  1. Hydraulic clamping ensures stable and adjustable compression force;
  2. Interchangeable flattening dies adapt to cylinders of portable and trolley-type fire extinguishers;
  3. Optional computer control module: records real-time flattening curve and outputs test reports automatically.

Applications of the firefighting equipment test bench

The fire protection market is inspected closely, so the test bench has to do two jobs at once: prove the hardware, and produce a certificate that survives an audit. The Fire Extinguisher Cylinder Flattening Test Machine is specified around both.

  • Valve and coupling production — body strength and seat tightness on extinguisher valves and hose couplings.
  • Municipal and industrial fire brigades — in-house periodic testing of the equipment they carry.
  • Extinguisher refilling and service stations — periodic requalification of cylinders before recharge, with the test date recorded on the unit.

What to specify before we build yours

  • Standard and test sequence — EN 3, GB 4351, GB/T 9251 or the local code, including the hold times and the deformation limit.
  • Cylinder sizes and volumes — from 1 kg portable bodies to wheeled and fixed units; the jacket and the clamp follow the size range.
  • Medium and drying — water is standard, but the bodies must be dried afterwards, so a drying stage is often part of the same cell.
  • Certificate format — the fields your inspector expects: serial number, test pressure, hold time, deformation, operator and date.

How to choose a firefighting equipment test bench

Firefighting testing is a volume business, so cycle time and record quality matter as much as pressure accuracy:

  • Count the steps around the test. Filling, venting, drying and marking often take longer than the pressure hold itself. A bench that integrates them changes the throughput of the whole line, not just the test station.
  • Confirm the deformation measurement method. Water-jacket and weighing methods are both accepted by different codes; the one your certificate has to show determines the fixture.
  • Plan for different cylinder sizes. Interchangeable clamps and jacket inserts are much cheaper than a second bench, but only if they are designed in from the start.

Frequently asked questions

Which standards can the test sequence follow?

The common ones are EN 3 for portable extinguishers, GB 4351 for Chinese-made bodies and GB/T 9251 for hydrostatic test methods, and the bench program is written to whichever of these your market requires. If you export to several markets, the sequence is stored as a recipe and selected per batch.

Does the machine test burst strength as well as proof pressure?

Yes — proof pressure and burst are the same pressure circuit with different set points and different acceptance criteria. A burst test is destructive, so it is normally run on samples rather than on every unit.

How long does one complete test cycle take?

A single-body proof test including fill, hold, drain and record typically takes a few minutes; the exact figure depends on body volume, fill rate and the hold time your standard requires. We quote cycle time for your specific body size rather than an average.

Related equipment and further reading

Need a pressure range, fixture or test standard that is not listed here? Send the specimen list and the standard you test to and we will come back with a configuration and a price within one working day.
