Vertical Valve Test Bench

Description

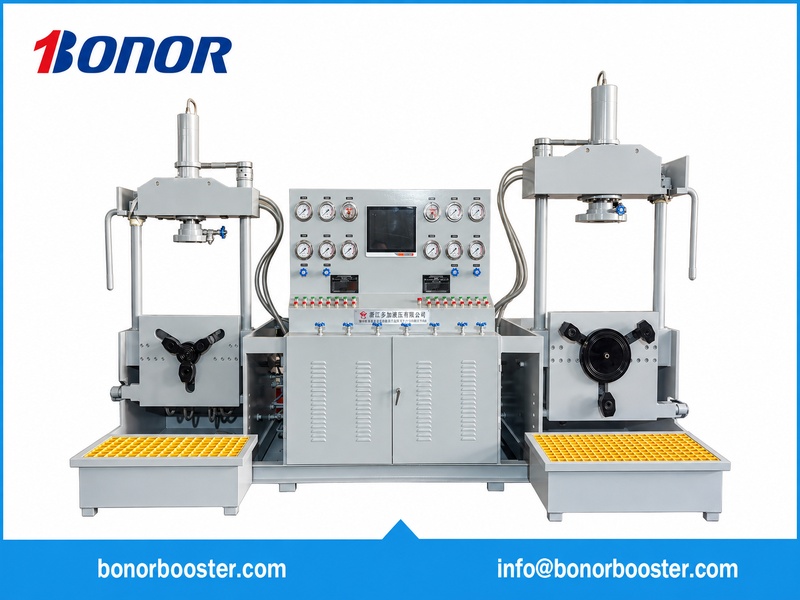

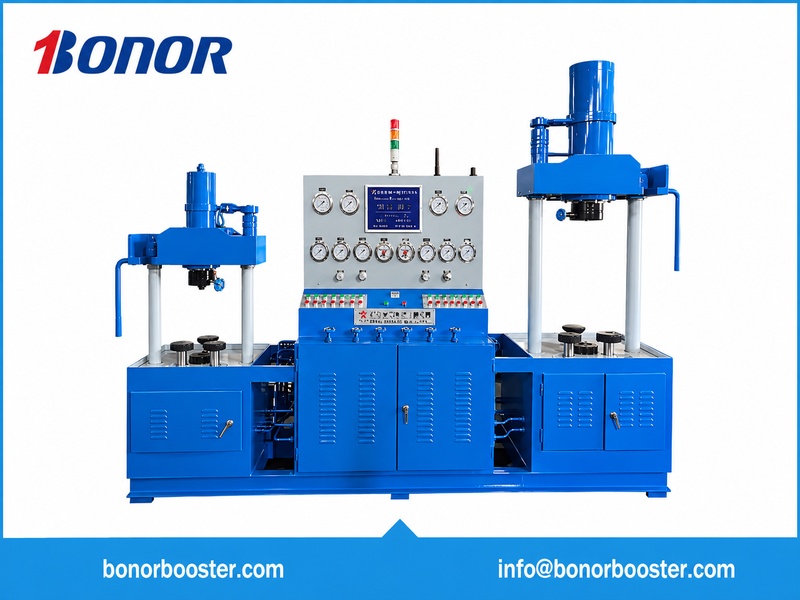

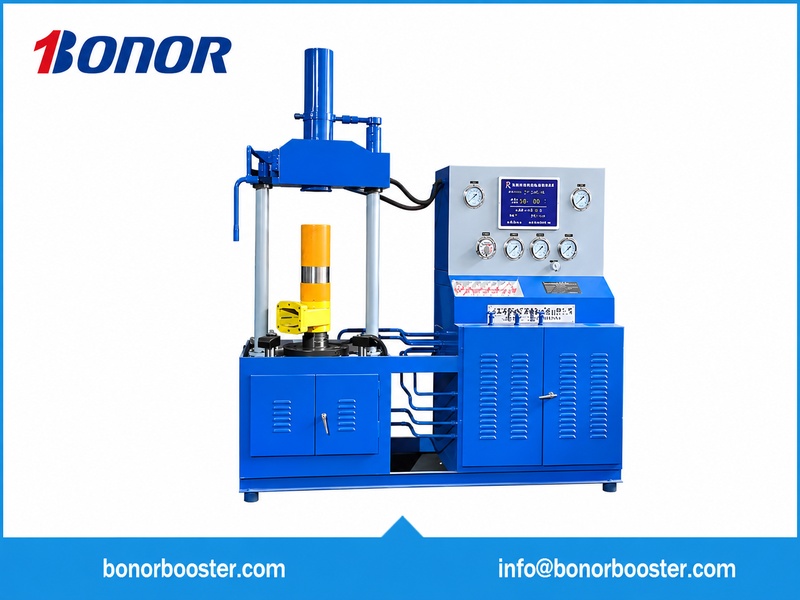

The Vertical Hydraulic Valve Test Bench is designed for pressure and sealing tests on various industrial valves. It combines secure clamping, precise pressure control, and built-in safety protection to support reliable testing in valve manufacturing plants and testing facilities.

Key Features

1. Wide Valve Compatibility
Suitable for testing ball, gate, globe, check, and control valves.

2. Modular Workbench Design
Two standard workbenches can be combined into one unit to accommodate different testing requirements.

3. Reliable Hydraulic Clamping
A hydraulic cylinder presses against the valve end face, while a claw mechanism clamps the rear of the flange. This design provides secure sealing while minimizing external forces on the valve.

4. Water and Gas Testing
Supports testing with water or gas. Test water can be recycled, and pipeline control valves enable switching between the two media.

5. Precise Pressure Control
A low-pressure, high-flow pump enables rapid filling, while a high-pressure pump provides controlled pressurization. An automatic pressure-holding timer starts when the preset test pressure is reached.

6. Zero-Pressure Safety Protection
The clamping mechanism can only be released when the pressure inside the tested valve has been fully relieved, helping prevent unsafe removal.

7. Optional Testing and Safety Systems
Optional features include safety doors, PLC-based data acquisition, and automated testing systems.

8. Customized Configurations
Non-standard specifications and configurations are available to meet specific valve dimensions, testing requirements, and production needs.

Technical Specifications
