Description

1. Application Scope

This test bench manufactured by Jinan Bonor is mainly used for factory inspection tests of shock-resistant oil-filled pressure gauges, precision pressure gauges and air pressure gauges.

Reference Standards: GB/T 1227-2002 Precision pressure gauges GB/T 4439-1984 Working conditions for industrial automatic instruments GB/T 4451-1984 Industrial automatic instruments

2. Basic Parameters

  1. Test medium: oil, water or ethylene glycol mixed liquid
  2. Test pressure: 0~160 MPa (adjustable)
  3. Pressure display resolution: 0.1 bar
  4. Test recording modes: real-time pressure curve recording via computer, or manual recording
  5. Test medium temperature: Ambient temperature ~ 130℃ (customized as customer’s requirement)
  6. Test Medium:Water, hydraulic oil or ethylene glycol
  7. Pressure Control Accuracy:+2% of full scale upper limit, -1% of full scale lower limit
  8. Operation Mode:Computer control / manual control
  9. Specimen Mounting Method:Threaded connection
  10. System Composition：Pressure generation system, test cabinet, pressure control system
  11. Application Object：Pressure gauges

Working Principle:The high-pressure pump generates high-pressure fluid according to set pressure values. The fluid is delivered to test specimens via high-pressure hoses after being regulated by the pressure control system to complete the calibration and testing of pressure gauges.

3. Equipment Composition

The test bench consists of three core assemblies:

  1. Pressure Generation System: Pressure pump, control valves and sensors
  2. Test Cabinet: Used for mounting test specimens, pressure regulation and system pressure indication
  3. Electric Control Cabinet & Computer Test System: Collect test pressure and cycle variation data, generate test reports and store experimental records

Electric Contact Pressure Gauge Electrical Signal Device Life Test Bench

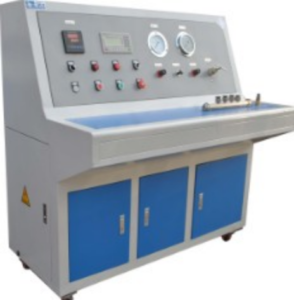

Electric Contact Pressure Gauge Electrical Signal Device Life Test Bench

 Developed by Jinan Siminte Technology Co., Ltd., this test bench is specially designed for the life test of electrical signal devices on electric contact pressure gauges.

The equipment is equipped with an automatic closing & opening test device for circuit breakers of various models and an undervoltage action detection device for circuit breakers, together with a control unit and a power supply unit. The control unit consists of an industrial control computer, a touch screen, control circuits for stepping motors and voltage regulating motors, as well as input & output circuits for control signals.
