Description

1. Application Scope

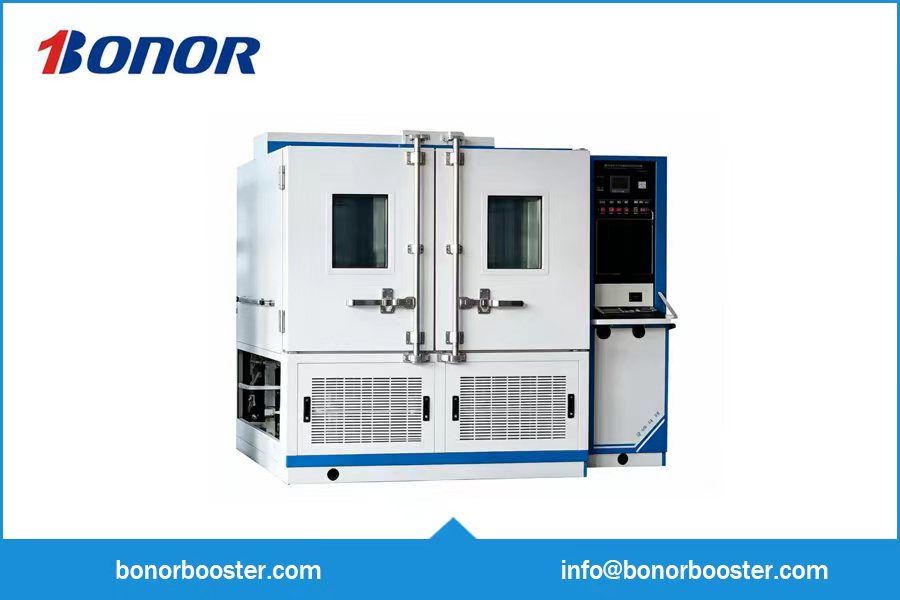

The pipe & hose pulse tester manufactured by Jinan Bonor is mainly used for fatigue testing of various hoses as listed below:

Automotive hoses

Steering hose, brake hose, air conditioning hose, fuel hose, cooling water hose, heat dissipation hose, heater hose, air filter hose, turbocharger system hose, engineering hydraulic hose

Other hoses

Aviation hoses and manifolds

Complied Standards

  • GB/T3683-1992 Wire reinforced hydraulic rubber hoses and hose assemblies
  • GB/T5568-1994 Rubber and plastic hoses and hose assemblies — Hydraulic pulse test without flexing
  • GB/T12722—1991 Rubber and plastic hose assemblies — Flexing hydraulic pulse test (Half Ω test)
  • GB7939-92 Test methods for hydraulic hose assemblies
  • ISO 6802-1991 Rubber and plastic hoses with wire reinforcement — Hydraulic pulse test with flexing
  • ISO 6803-1994 Rubber or plastic hoses and hose assemblies — Hydraulic pulse test without flexing
  • GB/T7127.1-2000 Road vehicle brake hose assemblies for hydraulic brake systems using non-petroleum base brake fluid
  • GB/T7127.2-2000 Road vehicle brake hose assemblies for hydraulic brake systems using petroleum base brake fluid
  • HT/T2718-1995 Rubber and plastic hoses and hose assemblies for automobile air conditioning
  • ISO 6805-1994 Rubber hoses and hose assemblies for underground mining — Specification for wire-reinforced hydraulic hoses for mining

Basic Technical Parameters

1.Test mediumOil, water or ethylene glycol mixed liquid

2Pulse pressure0 ~ 70 MPa (0 ~ 1015.27 psi), adjustable

3.Pressure control accuracy0.01 MPa (0.145 psi)

4.Pulse frequency5 ~ 30 times per minute, adjustable

5.Pulse pressure waveformSquare wave (or trapezoidal wave); pulse width can be customized as required

6.Test medium temperatureAmbient temperature ~ 160℃ (customizable per client demand)

7.Installation angleVertical 90°, 180°

8.Test cycleMore than 1,000,000 continuous cycles at one time

Equipment Composition

This test bench consists of three major components as follows:

  1. Hydraulic System: Circulation pump, pulse generator.
  2. Test Cabinet: It is mainly used for mounting test specimens, pressure regulation and system pressure indication.
  3. Electric Control Cabinet & Computer Test System: Start buttons and measuring instruments are all arranged on the console for centralized control and real-time monitoring. The computer system is able to collect parameters including test pressure waveforms, test cycles and pulse frequency. It supports report printing as well as fault alarm notification functions.
