Description

1. Product Introduction

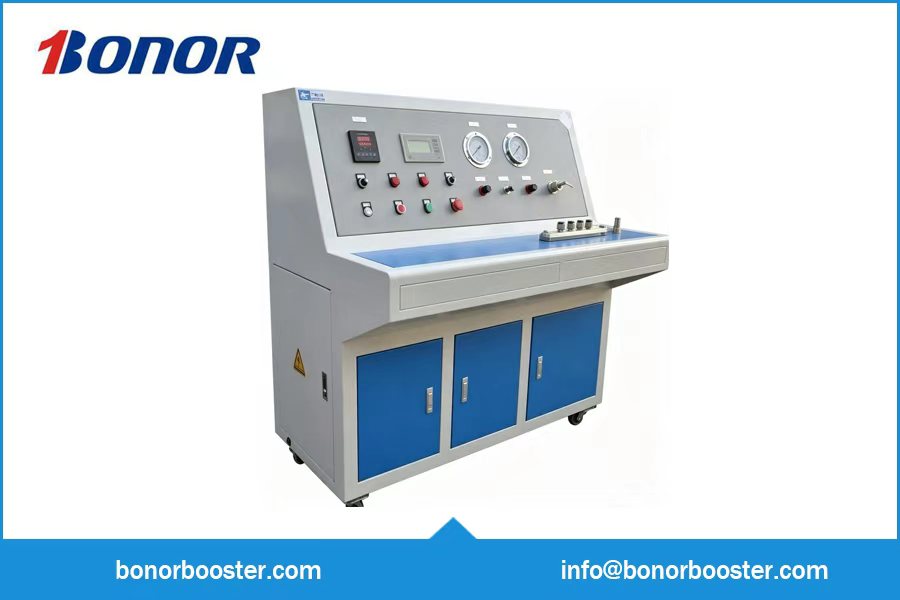

This test device developed  has a rated test pressure of 2 MPa, with controllable parameters including test pressure, test temperature and cycle times. It is specially applied to fatigue endurance tests for shock absorbers.

The whole control system adopts the framework of industrial control computer + secondary control instrument system + sensor switch control. All switching signals are monitored by closed-loop PLC with logical interlock design to ensure system safety and stability, meanwhile the device supports fault recording function.

2. Main Technical Parameters

Item Parameter
Test Medium Hydraulic oil
Operating Pressure Range 0.5–2 MPa
Test Ambient Temperature Ambient temperature
Time Display Mode Computer display
Pressure Curve Display Real-time display via data acquisition software
Report Printing Function Test reports can be printed and corresponding test data saved after test completion
Test Data Storage Support storage of test reports and whole test process records
Pressure Display Resolution 0.01 MPa
Pressure Control Accuracy 1%
Medium Temperature Ambient temperature

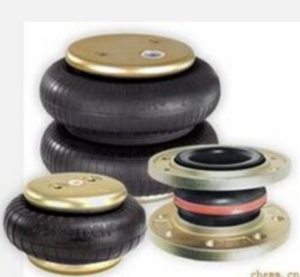

Application Scope Various types of shock absorbers

3. Product Features

  • Real-time display of pulse pressure waveforms (preset waveform & actual waveform), pressure value, cycle count, fluid temperature, ambient temperature and other parameters;
  • Automatic data saving upon power failure;
  • Realize computer-based data acquisition & processing, support printed output of pressure data, fatigue cycles and fatigue pressure waveforms;
  • Automatic recovery of leaked medium after disassembly of tested pipelines;
  • High operation safety: automatic leakage detection & emergency shutdown for workpieces, equipped with comprehensive electrical safety protection mechanisms.

4. Typical Applications

  • Fatigue test for automotive shock absorbers
  • Fatigue test for electric vehicle shock absorbers
  • Fatigue endurance test for electric vehicle shock absorbers
  • Pulse fatigue test for motorcycle shock absorbers
  • Fatigue endurance test for shock absorber components
  • Pulse fatigue test for motorcycle shock absorbers
