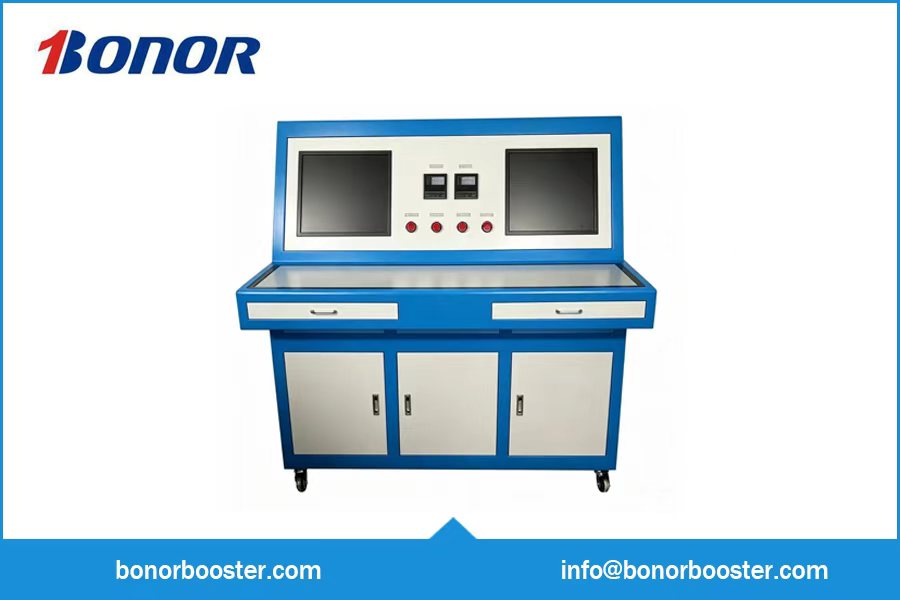

Well Control Equipment Hydrostatic Test System

Description

一、Application Scope

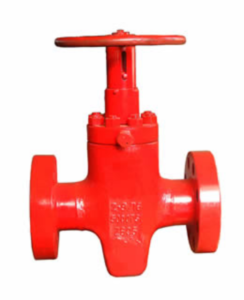

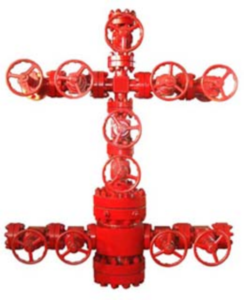

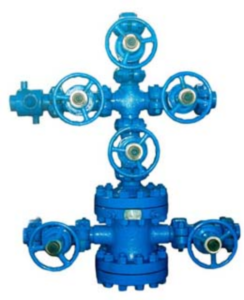

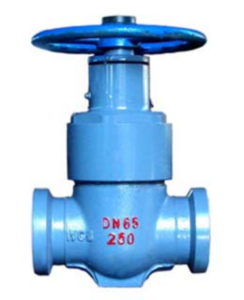

This system supports hydraulic testing within 0~280 MPa, covering factory inspection and functional tests for blowout preventers (BOP), oil & gas production trees, wellhead assemblies, choke & kill manifolds and other well control products. This hydraulic test bench is applicable for air tightness testing of petroleum pipes, BOPs, valves, gas production wellheads, manifolds, downhole tools, as well as pressure vessels used in aviation, scientific research institutions and other industrial sectors. The equipment is designed and manufactured in accordance with relevant specifications.

二、Applicable Test Standards

• SY/T5053.1 ~ 2000: Blowout Preventers and Control Systems – Blowout Preventers
• SY/T5127 ~ 2002: Specification for Wellhead Assemblies and Christmas Trees
• API Spec 16A / ISO 13533: Specification for Drill-through Equipment
• API Spec 16C: Specification for Choke and Kill Manifolds
• API Spec 6A / ISO 10423: Specification for Wellhead and Christmas Tree Equipment
• Public safety industry standards of China & management requirements issued by Ministry of Public Security for safety precaution engineering

三、Equipment Features

1. The system pressure is adjustable and precisely controllable.
2. Video monitoring module is available for remote real-time visual monitoring.
3. All pressure-bearing components adopt standard parts from world-famous brands with an entirely weld-free structure. The equipment features easy disassembly & assembly, high safety factor, long service life and convenient maintenance.

四、Technical Parameters

1. Driving air pressure: 0.1–0.69 MPa; the output pressure is in direct proportion to driving air pressure
2. Air consumption: 1.6 Nm³/min
3. Test pressure range: 0–280 MPa, customized pressure range is optional according to actual customer requirements
4. Working medium: Water / Hydraulic oil
5. Computer-based data acquisition and control system can be configured upon customer request
