Description
1. Application Scope

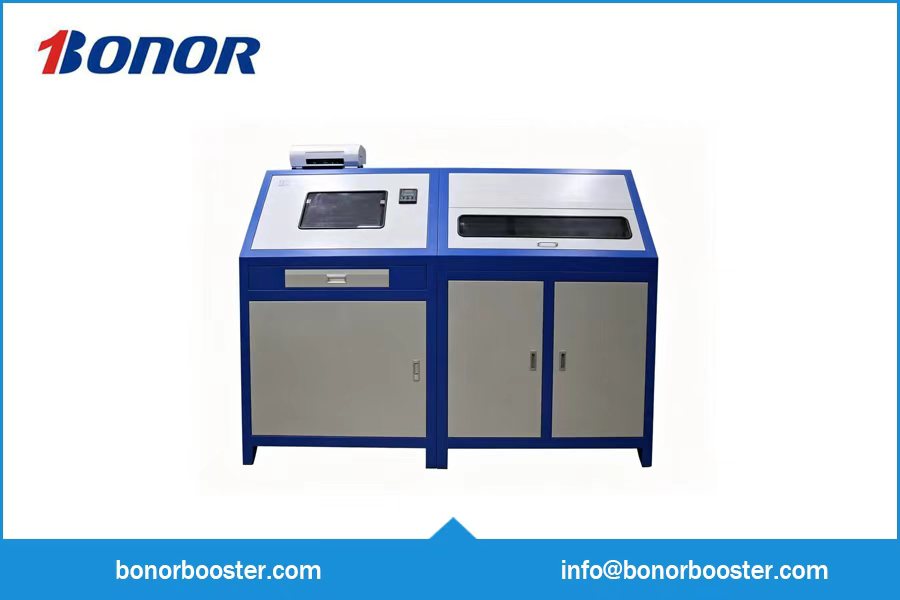

Bonor plastic pipe hydrostatic test machine is designed for pressure resistance and burst performance testing of plastic pipes, PVC pipes, PPR pipes and other tubular products. The machine consists of pressure test system, pressurization system as well as control & display system, supporting both manual control and computer automatic control modes. Equipped with Bonor liquid booster unit, the pressurization system completes pressure build-up and pressure holding for long-term static hydraulic fatigue tests with stable pressure retention performance. The control & display system manages driving air pressure, pressure relief and pressurization processes while displaying real-time pressure values. It is applied to measure burst pressure and pressure-resistant duration of various pipes, widely used in quality inspection institutions, auto parts manufacturers, product testing stations, scientific research institutes, as well as the production, development and research of all types of flexible hoses.
2. Test Standards
This machine is developed and manufactured in compliance with the following specifications:
- EN ISO1402-1996 / NF T47202-1996: Rubber and plastic hose assemblies — Static hydraulic test
- GB/T6111: Thermoplastics pipes for conveying fluids — Test method for resistance to internal pressure
- GB/T10002.1: Unplasticized poly(vinyl chloride) (PVC-U) pipes for water supply
- GB/T4219: Rigid poly(vinyl chloride) pipes for chemical industry
- GB/T6674: Low-density polyethylene pipes for irrigation
3. Equipment Features
- Fitted with Bonor air-driven automatic booster pump to realize stepless adjustable and controllable output pressure.
- Adopts advanced technology and reasonable structural layout, featuring small footprint, light weight and elegant appearance.
- All pressure-bearing components adopt standard parts from world-renowned brands with fully weld-free structure. The equipment is easy to disassemble and assemble with high safety factor, long service life and convenient maintenance.
4. Technical Parameters
- Driving air pressure: 0.1 ~ 0.69 MPa; the output pressure is directly proportional to driving air pressure
- Air consumption: 1 Nm³/min
- Test pressure range: 0 ~ 300 MPa, customized pressure range available upon customers’ practical requirements
- Working medium: Water, hydraulic oil, emulsion
- Portable automatic recorder is optional according to customer demands
