- Driving air pressure: 0.1–0.69 MPa; output pressure is proportional to driving air pressure
- Air consumption: 1.6 Nm³/min
- Test pressure range: 0–280 MPa, customized pressure range is available according to customer requirements
- Working medium: Water / Hydraulic oil
- Portable automatic recorder can be configured on demand

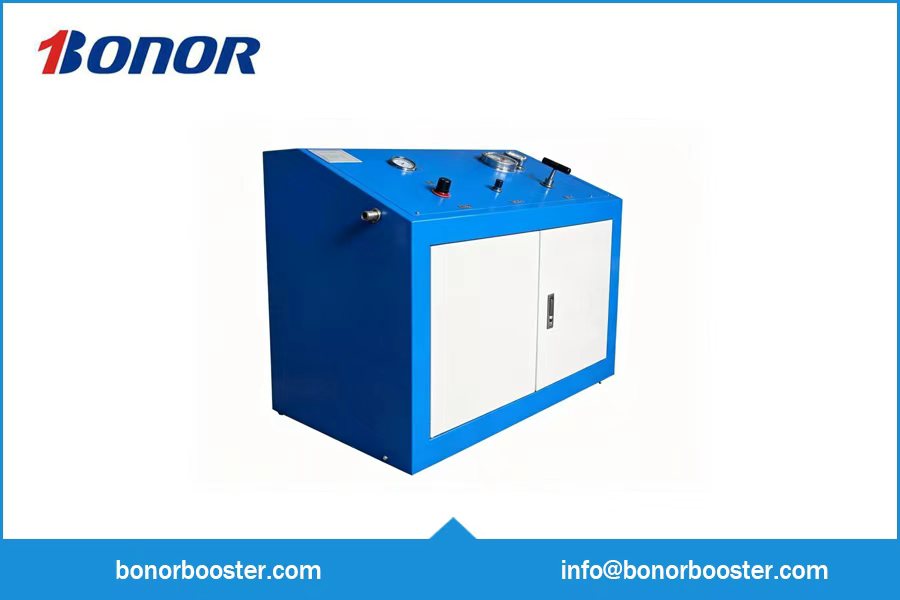

Portable hydrostatic testing machine
Description
一、Application Scope
Bonor portable pressure system features compact size, high working pressure and favorable price. It is easy to transport and suitable for field operation. Manual pressurization is available when power supply is unavailable, with water or hydraulic oil as test medium. This unit is widely applied in pressure calibration, liquid filling, offshore drilling platforms and aircraft component calibration. With easy portability, intuitive operation and adjustable pressure, it is a simplified lightweight version of standard pressure systems.
二、 Equipment Features
- Equipped with air-driven automatic booster pump with adjustable output pressure.
- Adopts advanced technology and reasonable structural design, featuring small size, light weight and elegant appearance.
- All pressure-bearing components are standard parts from world-famous brands without welded joints. The structure is easy to disassemble, with high safety factor, long service life and convenient maintenance.
三、Technical Parameters
- Driving air pressure: 0.1–0.69 MPa; output pressure is proportional to driving air pressure
- Air consumption: 1.6 Nm³/min
- Test pressure range: 0–280 MPa, customized pressure range is available according to customer requirements
- Working medium: Water / Hydraulic oil
- Portable automatic recorder can be configured on demand
四、 Application Scope
- Static and dynamic testing for aerospace accessories after maintenance
- Calibration and verification of safety valves
- Underwater bubble leak test for valves and wellhead assemblies
- Performance test for automobile braking systems
- Gas charging equipment for communication cables
- Nitrogen filling for aircraft tires and hydraulic accumulators
- Pressure testing of high-pressure gas systems and precision instruments
- Demineralization treatment including reverse osmosis and desalination process
- Pressure supply for testing and calibration of natural gas components
- Power supply for downhole fluid depth acoustic logging equipment
- Pressure boosting systems for coal mines (explosion-proof industry)
- Research on flow characteristics of high-pressure gas
Bonor Hydrostatic Test Bench
This test bench is mainly applied to factory inspection of the following components:
Automobile Hoses
Steering hoses, brake hoses, air conditioning hoses, fuel hoses, cooling water hoses, heat dissipation hoses, heater hoses, air filter hoses, turbocharger system hoses & engineering hydraulic hoses
Other tested products
Aerospace hoses and pipe assemblies, rigid pipes & pipe joints; automotive brake pumps, radiators, oil coolers and cylinder blocks.
Application of Engineering Hydraulic Hoses
Implement burst pressure tests for hydraulic pipes used in hydraulic equipment, construction machinery and mining machinery; Complete pressure resistance test and burst test for pressure-bearing equipment such as valve bodies and cylinder barrels.
