Description

I. Application Scope

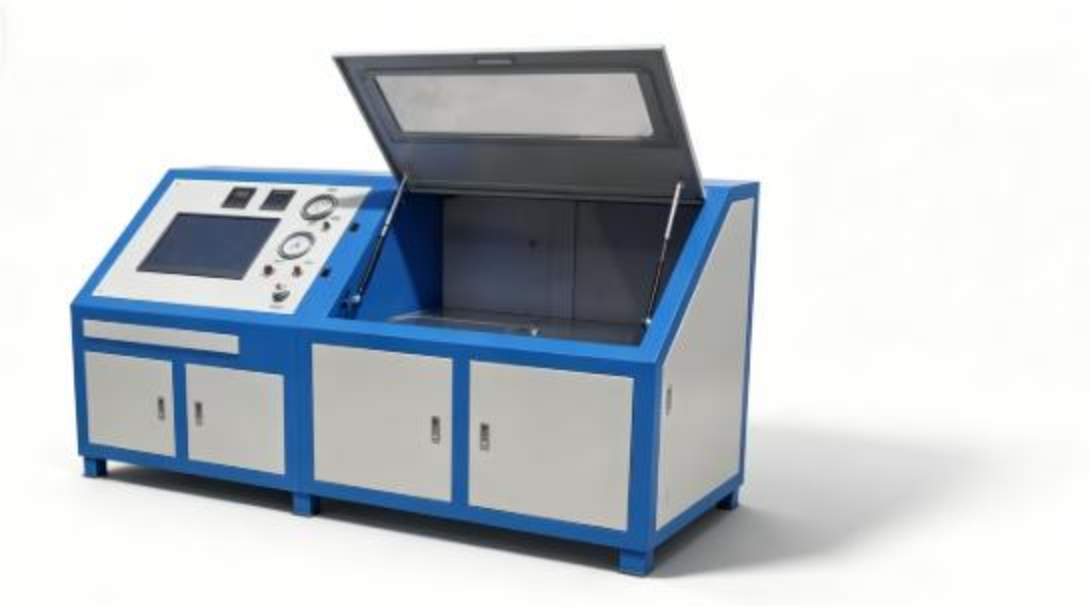

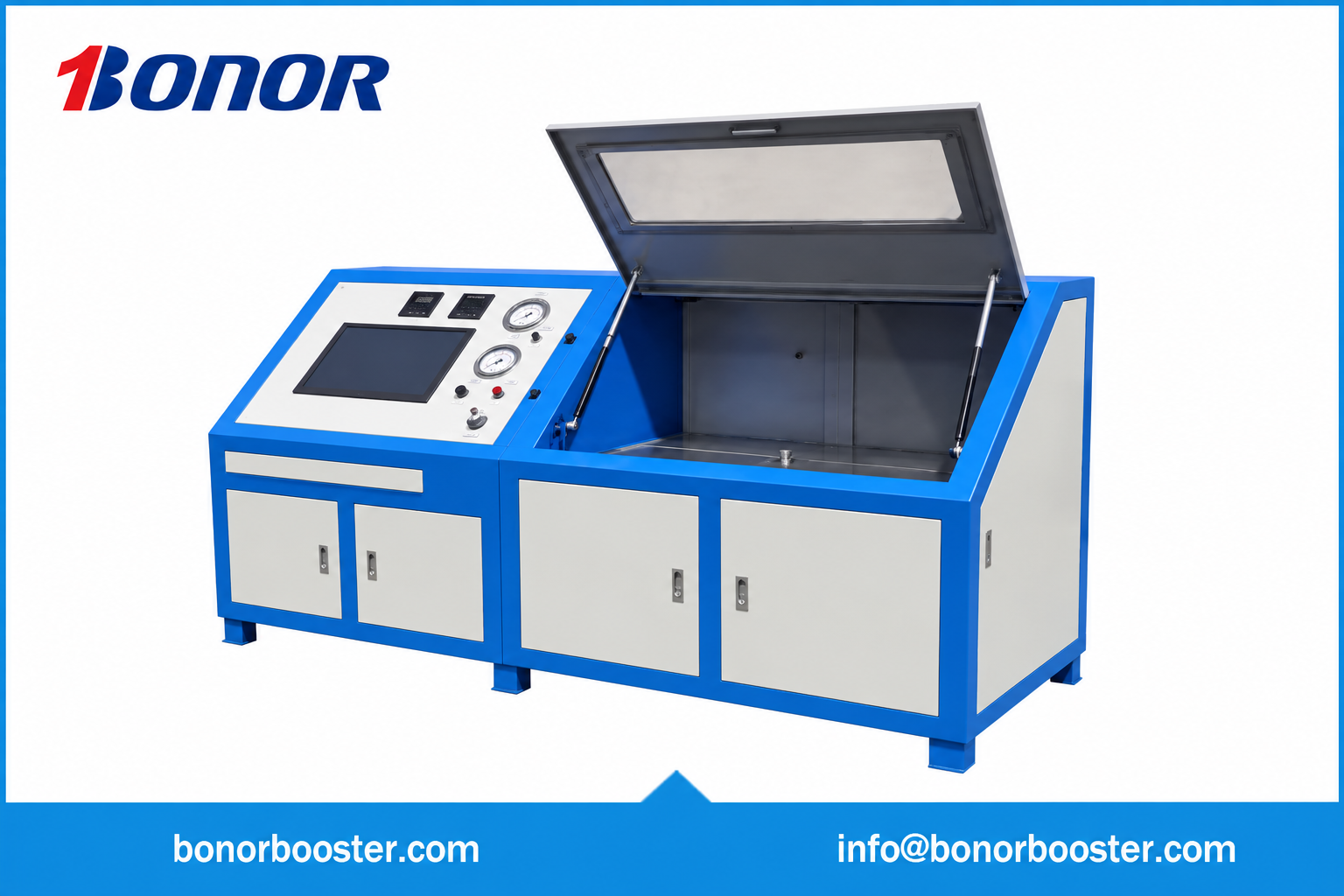

The air spring bursting tester developed by Jinan Simtete Technology Co., Ltd. is used for hydrostatic pressure resistance testing of free-type air springs, self-locking air springs, traction air springs, height-adjustable air springs, swivel chair air springs, gas struts and dampers. The test will automatically stop and trigger an alarm when test conditions are abnormal. The system is capable of collecting bursting pressure data, calculating expansion rate and generating formal test reports.

II. Basic Parameters

1. Test medium: Water
2. Pulse pressure: 0–5 MPa (adjustable)
3. Pressure control accuracy: ±0.5%
4. Water volume acquisition precision: 0.1 g
5. Test channel: 1 channel (multi-channel optional)

III. Features of Air Spring Bursting Tester

1. Power system: Equipped with Simtete pressure booster pump for precise pressure control.
2. All spare parts adopt standard components from internationally renowned brands.
3. Multiple optional control modes including semi-automatic and fully automatic control. The computer system collects test pressure waveforms, test cycles, pulse frequency and other parameters, supports report printing, and is equipped with fault alert function.
4. The whole structure adopts non-welded connections for easy disassembly and maintenance, featuring safe and efficient operation.
