Description

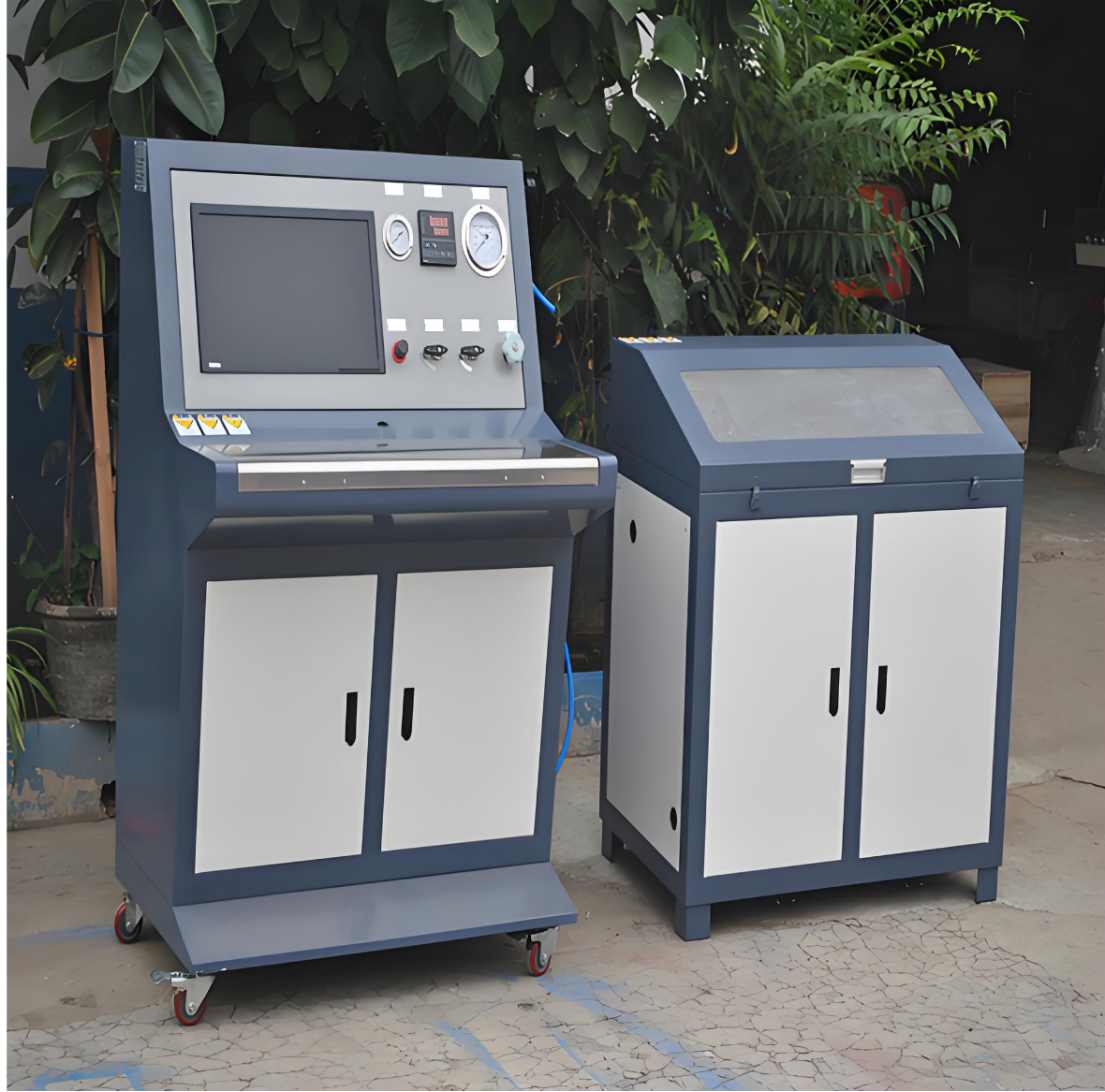

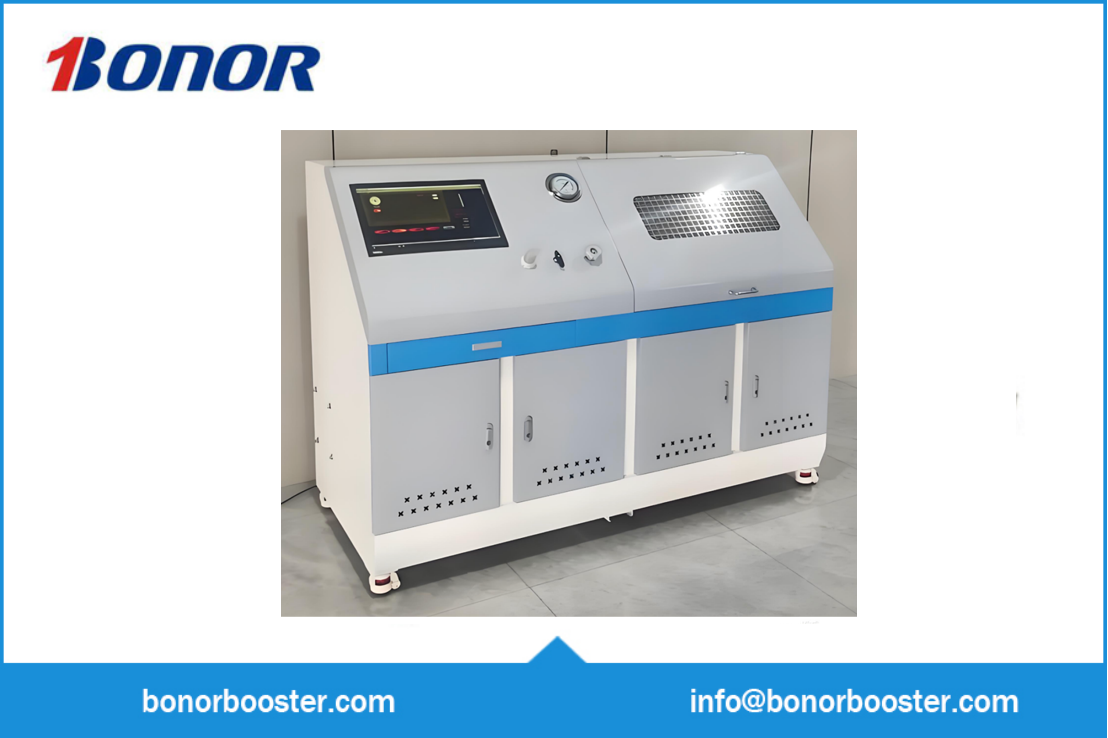

What is Burst Test Bench for Pipes
The Hydraulic Burst Pressure Tester uses water, hydraulic oil, or other liquids as the testing medium. It can generate a maximum hydraulic pressure of 408 MPa and inject the fluid at your desired pressure into sealed components. This simulates high-pressure conditions, allowing for hydrostatic tests, pressure proof tests, and pressure burst tests on various sealed components and pressure vessels, including hydraulic hoses, fire hoses, instruments, liquid cold plates, valves, joints, cylinders, gas tanks, and fire extinguisher cylinders.

To ensure accurate test results, it’s important to remove air from the hydraulic testing circuit before performing the hydro test. To assist with this, we offer an electric water pump that helps quickly and efficiently bleed air from the system.
Burst Test Bench for Pipes main components:
- Air-driven hydraulic pump
- Electric water pump optional(bleed air bubbles in hydraulic
- Reservoir
- AIr regulator
- Pressure gauge
- Protective test chamber
Applicable range of Burst Test Bench for Pipes:
Automotive steering pipes, brake pipes, air conditioning pipes, oil pipes, coolant pipes, radiators, hydraulic equipment, condensers, evaporators, automotive brake pumps, cylinder blocks, air hoses and manifolds, rigid pipes, connectors, valves, cylinders, pressure gauges, pressure sensors, pressure vessels, pressure transmitters, etc.
Function and Features of Burst Test Bench for Pipes:
Non-Welded Piping System: The piping system uses non-welded connections, separating the test fluid system from the driving fluid system. This design makes it easier to control the test temperature and allows for a variety of test media.
Advanced Software Control: The system uses force control configuration software or is written in LABVIEW for computer control, ensuring precise and flexible operation.
Versatile Ancillary Tools: A wide range of auxiliary tooling is available to accommodate different specimens for installation.
Automatic Pressure Compensation: During testing, the pressure is automatically compensated. When the burst pressure drops rapidly, the system will stop automatically to prevent further pressure fluctuations.
Safety Protection: Specially designed protection for tools and equipment ensures the safety of both personnel and equipment during the burst testing operation.
Comprehensive Computer Control: The computer control function allows for customization of settings such as:
Water fill time, exhaust time, holding pressure time, and aeration cleaning time.Single or multi-stage pressure holding tests.Holding pressure directly after bursting.Adjustable boost speed and constant pressure maintenance.Stepless adjustment of test parameters.Real-time display of test data and curves.Automatic saving of test results and the ability to print detailed test reports.
As a professional manufacturer of hydraulic pressure testing equipment, we have extensive experience in testing hoses, pipes, pipelines, valves, sensors, cylinders, and pressure gauges. We offer reliable hydraulic pressure testing equipment, leak testing equipment, burst testing equipment, and pulse testing equipment.
Our testing services are fully compliant with industry standards such as GB/T5568, GB7939, ISO6802, ISO6803, ISO8032, GB/T12722, GB16897, GB/T5563, GB/T10544, and more. We specialize in pressure performance testing for hydraulic hoses and hose assemblies, automotive brake lines, power transmission pipelines, and other pressurized components.
If you require any of these services, please feel free to contact our engineers at any time.
Typical uses of a burst pressure test bench
A burst number on a datasheet is only worth what the test behind it is worth, and the test is only as good as the bench that ran it. The Burst Test Bench for Pipes gives your laboratory or production line one fixed reference: same clamp, same rate, same report, every sample. This unit is laid out primarily for pipes. If your sample list also covers other families, tell us — the pressure section is shared, only the fixture changes.
- Composite tank and CNG vessel workshops — liner and overwrap verification at code-specified multipliers.
- Fire equipment and extinguisher bodies — cylinder shells proof- and burst-checked as part of periodic requalification programmes.
- Pipe extrusion and steel pipe mills — finished pipe sampled from every run to confirm the hoop-stress rating with a recorded failure curve.
Every Burst Test Bench for Pipes is laid out around its duty cycle, and here that means pipes. The controls, the guards and the record format follow from that.
What to specify before we build yours
- Maximum test pressure and pressure-holding time — the bench is sized around your highest specimen rating plus a safety margin, not around the average. It is set up here for the pipe section.
- Test medium — water, oil, glycol mixture or air; the choice changes the pump, the plumbing and the safety enclosure. On this unit it is arranged for the pipe section.
Choosing the right burst pressure test bench
Two quotations can quote the same maximum pressure and still be built for different jobs. Before you compare prices, pin down the points below:
- Decide the medium before the pump. Water is cheap and safe but needs rust protection and drying; oil avoids corrosion but costs more and needs disposal; air gives a cleaner test but requires an enclosure and interlocks because a burst stores far more energy.
- Verify the detection logic on site. Ask the supplier to demonstrate a false-drop test — a slow leak that must not be mistaken for a burst — during commissioning, and record the threshold settings in the acceptance protocol.
- Records for the pipe section. The report is laid out with the fields your pipe section standard asks for, so a result leaves the shop as a certificate rather than a rewrite job.
Frequently asked questions
How long does a typical burst cycle take?
For most hose and pipe work, a few minutes: fill, ramp at the standard rate, failure, drain. Large vessels with big volume take longer mainly on fill and stabilisation. When you tell us the specimen volume and the target rate, we quote the realistic cycle time rather than the best case. With pipes as the main duty, we verify this point on your parts before the machine ships.
What happens to the data if the power fails mid-test?
The controller writes samples continuously rather than at the end, so a power cut costs you the specimen but not the portion of the curve already recorded. The log is marked as interrupted so nobody mistakes a partial file for a complete test. On the Burst Test Bench for Pipes, that is part of the standard delivery, not an option.
Related equipment and further reading
Bench or fixture questions we have not answered here? Write us the specimen and the standard — a configuration with pricing follows within one working day.
