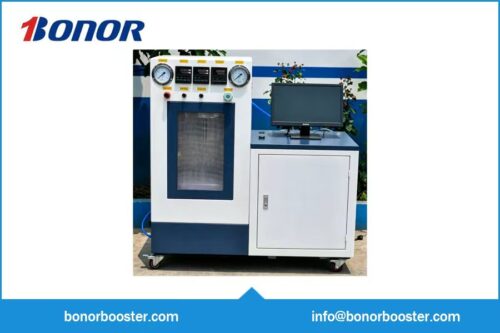

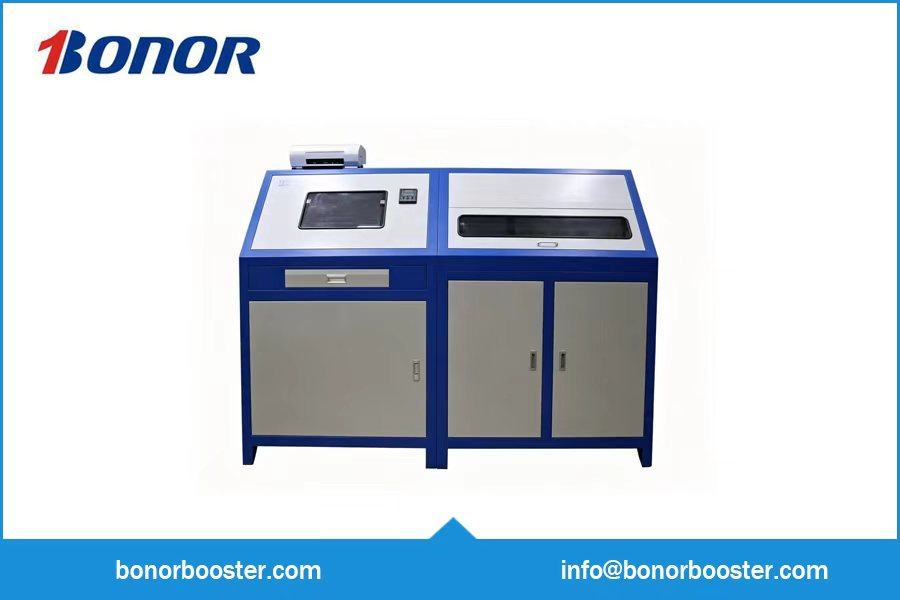

Gas Pressure Burst Testing Machine
Description
I. Application Scope

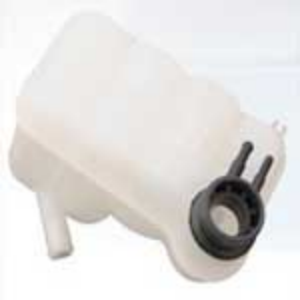

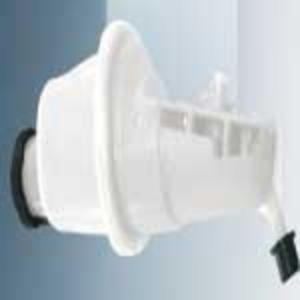

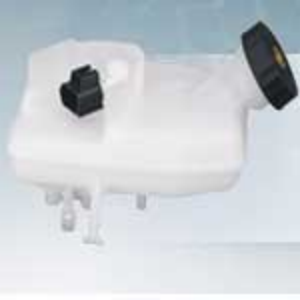

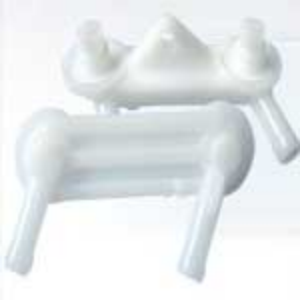

The air pressure burst strength testing machine for power steering oil reservoirs is designed to test the pressure resistance and sealing strength of plastic oil reservoirs. The pressurization rate can be regulated via computer control, with a maximum test pressure of 3 MPa. This equipment serves as an anti-burst pressure test bench applicable for air pressure resistance tests on clean water pump oil pots, power steering oil pots, clean water pots, as well as air burst tests for plastic containers and power steering pump oil reservoirs.
![]() |
![]() |
![]() |
![]() |
II. Composition of Burst & Pressure Resistance Test Equipment
Gas Pressurizing Unit Adopts booster pump for pressurization; the output pressure is adjustable with a maximum value of 3 MPa.
Mounting Structure & Test Chamber Equipped with an internal stainless steel explosion-proof cabinet. It allows convenient placement of test specimens and effectively ensures the personal safety of testing operators.
Pneumatic Burst Control Unit Accurately controls the pressurization rate and test pressure, and supports computer centralized control.
Data & Report Output Function Test reports can be printed automatically upon test completion, and pressure change curves can be stored for subsequent review.
Ⅲ. Features of Gas Pressure Burst Testing Machine
- Equipped with a control unit to realize adjustable and controllable output pressure and test duration. The Simteter booster pump enables convenient and stable pressure regulation.
- Adopts advanced technology with rational structural layout; different pipeline assemblies can be replaced according to actual testing demands.
- Optional SUPY1.0 automatic data acquisition system is available for real-time pressure curve monitoring and test report printing. All pressure test data can be exported and saved into Excel files for later inquiry and review.
Ⅳ. Technical Parameters of Pneumatic Burst Pressure Test
- Data recording mode: Manual recording or computer automatic recording is optional.
- Rated working pressure: 3 MPa, adjustable within a certain range.
- Working medium: Compressed air.
- The data acquisition system can be customized and configured in accordance with customer requirements.
What a burst pressure test bench does in production
Destructive testing only pays for itself if the results are comparable between shifts, operators and weeks. The Gas Pressure Burst Testing Machine removes the human variables — clamping force, pressurisation rate and detection threshold are all set by programme, not by feel. On this configuration the emphasis is gas: the fixture, the ramp profile and the recording settings are arranged around that job first, and other specimen families can be added later.
- Composite tank and CNG vessel workshops — liner and overwrap verification at code-specified multipliers.
- Gas equipment manufacturers — regulators, manifolds and flexible connections verified above the maximum supply pressure.
Day-to-day, the Gas Pressure Burst Testing Machine works around one thing: the part. Loading, clamping and the report format are arranged so that a part goes from bench entry to signed result without re-work.
What to specify before we build yours
- Specimen envelope and clamping — hose bore and length, pipe diameter, cylinder height and the fixture that holds the part without crushing it. On this unit it is arranged for the part.
- Recording requirement — whether you need a printed curve per sample, a database record, or only a pass/fail lamp. The setting here follows the part you run most.
How to choose a burst pressure test bench
Most dissatisfaction with burst benches traces back to a specification written from a catalogue instead of from the specimen. These checks keep the order honest:
- Look at how the fixture treats the specimen ends. Crushed hose, slipped plugs and scratched faces produce failures that say more about the clamp than the part. A good fixture spreads the grip and keeps the ends free to move the way they will in service.
- Check the service story before the sale. Pumps, valves and seals all need spares eventually. Ask what is stocked locally, what the typical wear parts are, and how a routine seal change is done — a bench that is down waiting for parts tests nothing.
- Handling for the part. Loading height, clamping force and the drain path are arranged for the part you run most, which is where the daily minutes are won or lost.
Frequently asked questions
What happens to the data if the power fails mid-test?
The controller writes samples continuously rather than at the end, so a power cut costs you the specimen but not the portion of the curve already recorded. The log is marked as interrupted so nobody mistakes a partial file for a complete test. In practice, the part dictates the answer here — and that is what the quotation is built around.
Is water always the medium for burst testing?
Water is the default because it is incompressible and safe, but it is not universal. Air or nitrogen is required when the part must stay dry, and oil when corrosion matters. Each medium changes the pump, the instrumentation and the safety provisions, which is why the medium is fixed at the design stage. Every Gas Pressure Burst Testing Machine we ship is commissioned against this point with your own samples present.
