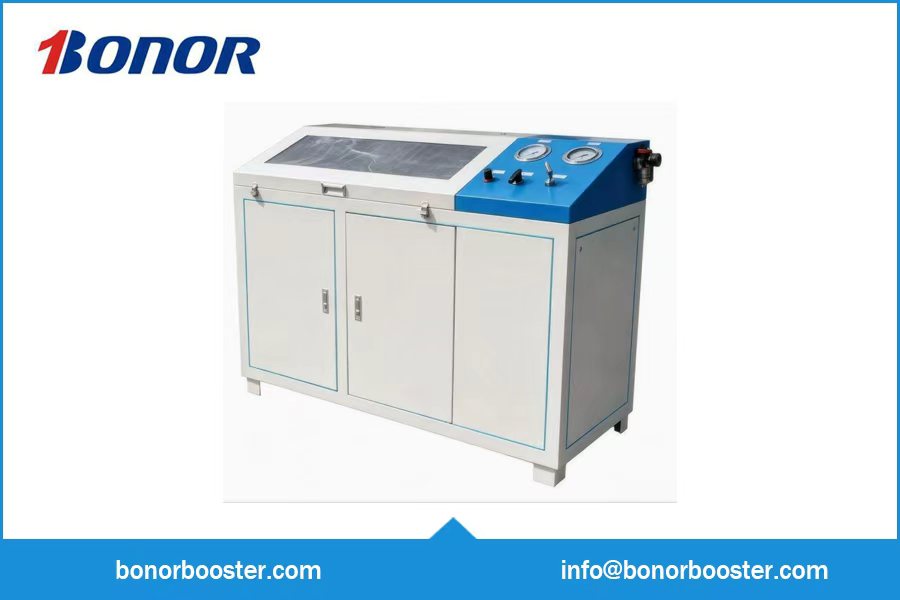

Fire Extinguisher Air Tightness Test bench

Description

1. Application Scope

Manufactured by Jinan Bonor, the fire extinguisher air tightness test chamber is used for pressure resistance inspection of fire extinguisher cylinders. This multi-functional cylinder hydrostatic tester is developed in full compliance with national standards: GB4351.1-2005 Portable fire extinguishers, GB/T4351-2005 Part 3: Inspection rules, GB8109-2005 Wheeled fire extinguishers.

2. Equipment Features

1. Equipped with Bonor booster pump to realize pressure boosting.
2. Hydrostatic test pressure is adjustable and controllable accurately.
3. Built-in water collecting tank to contain leaked water from tested samples.

3. Technical Parameters

1. Test medium: Tap water
2. Temperature control range: 5℃ ~ 55℃
3. Temperature control accuracy: ±1℃
4. Heating power: 3KW
5. Loading capacity for each test batch: 10 pcs of 2kg fire extinguishers, 6 pcs of 8kg fire extinguishers, 1 pc of 35kg wheeled fire extinguisher
