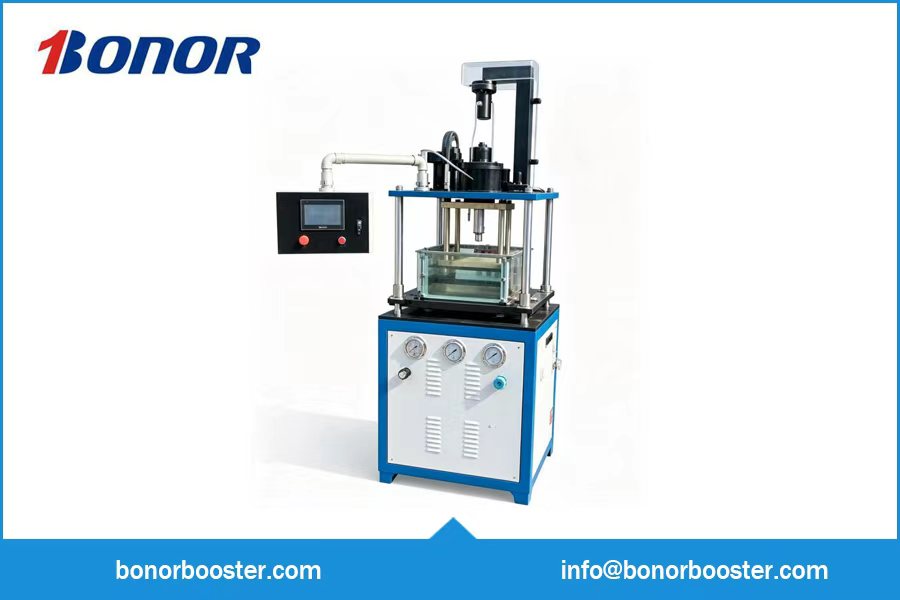

Fitting Air Tightness Testing Machine
Description
1. Application
Bonor fitting air tightness tester is used for sealing inspection of various pipe fittings via bubble immersion test. It is applicable to copper fittings, stainless steel fittings, elbow joints, hose connectors, quick couplings and sanitary fittings. The test pressure is adjustable within 0~3 MPa, and customized test fixtures can be configured according to actual product demands.
 |
 |
2. Basic Parameters
- Test medium: Air
- Test pressure range: 0~3 MPa (custom pressure available)
- Pressure display accuracy: 0.01 MPa
- Control mode: Touch screen control or computer control
- Test principle: Bubble immersion method
3. Equipment Composition
- Pressurization system: High-pressure gas source supplied by booster pump or air compressor
- Clamping device: Hydraulic clamping & pneumatic clamping fixtures for sealed clamping of tested workpieces
- Control system: Manages test pressure, pressure holding time, water tank lifting and other running actions
- Water tank assembly: Composed of lifting cylinders, stainless steel water tank and matching accessories
