Whole Vehicle Air Tightness Test Machine

The Whole Vehicle Air Tightness Test Machine is built for pressure-decay and flow leak detection. The sensor is sized against the leak rate you need to resolve, not against the pressure rating.

Send Inquiry

Description

一、 Product Introduction

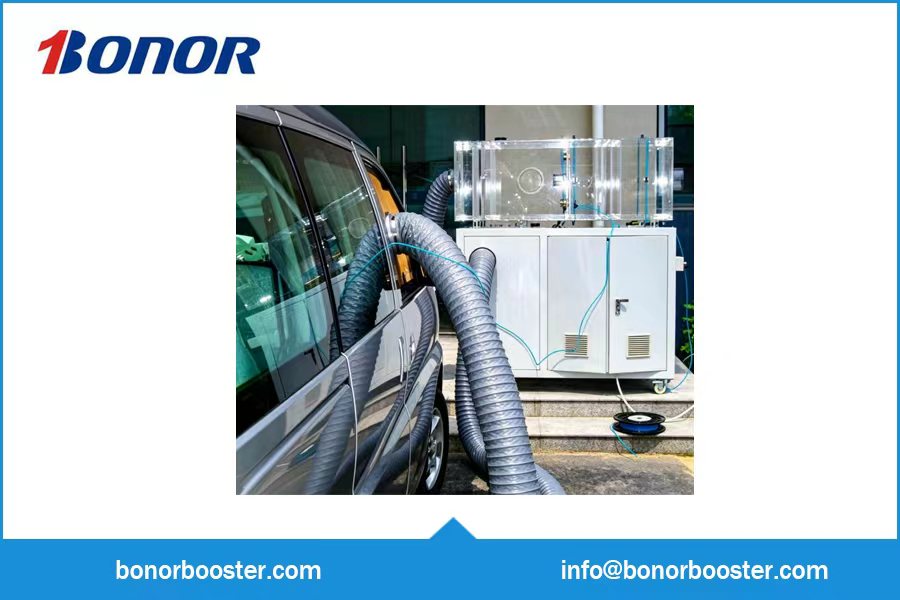

Developed by Jinan Bonor, the whole vehicle air tightness test machine is designed for quantitative measurement of air tightness performance for complete vehicles, body-in-white and other related systems.

Applications

  1. Air tightness testing for body-in-white
  2. Leakage flow measurement of vehicle body
  3. Air volume distribution test for automotive air conditioning system: measure the air volume of each air outlet of the air conditioning assembly to verify whether the vehicle air conditioning system complies with relevant standard requirements.

二、Technical Parameters of Whole Vehicle Air Tightness Test Machine

a.Flow measuring range: 5~400 SCFM; System flow test accuracy: ±1%; System flow repeatability accuracy: ±0.2% of reading

b.Test pressure range: -250Pa ~ 250Pa, adjustable within operating pressure range without equipment restart

c.Full measuring range: 0 ~ 400 SCFM. Automatic range switching within 0~400 SCFM, no manual operation required

d. Ambient working temperature: -20℃ ~ 60℃

三、 Product Features

  1. Equipped with pressure balance bar assembly to measure average pressure at multiple measuring points inside the vehicle cabin.
  2. The whole system supports self-calibration & verification, matched with dedicated calibration tools and calibration devices.
  3. Compact size with good mobility; floor area ≤ 0.5 square meters, equipment height ≤ 1.5 meters.
  4. Supplied with inflation hoses and window adapters; the length of inflation hose is no less than 3 meters.
  5. Fitted with micro leakage detector to accurately locate leakage positions.



Applications of the air tightness test bench

Leak testing catches the defects that a pressure test cannot: a pinhole that holds 6 bar for a minute but leaks 20 ml/min in service. The Whole Vehicle Air Tightness Test Machine is built around that measurement rather than around the pressure rating alone.

  • Medical and household appliances — sealed housings where a leak compromises function rather than safety.
  • Radiators, condensers and heat exchangers — leak detection on tanks, headers and tube joints after brazing.
  • Valve and fitting assembly — seat and body leak checks at the end of the assembly line.

What to specify before we build yours

  • Leak rate to be detected — expressed in ml/min, Pa/s or ppm; this single number decides the method, the sensor and the chamber.
  • Test pressure and part volume — decay time scales with volume, so a large part at low pressure needs a different approach from a small part at high pressure.
  • Method — pressure decay, differential pressure, mass flow or helium; each has a different sensitivity and cost.
  • Automation level — manual clamp-and-press, semi-automatic with a fixture, or a station integrated into a conveyor line.

How to choose a air tightness test bench

Most leak-test problems come from the specification, not the instrument. These three questions decide the machine:

  • Start from the allowable leak rate. Convert it into a pressure-decay value for your part volume, then check that the sensor can resolve one tenth of it. If it cannot, no amount of averaging will fix the measurement.
  • Control the temperature and the fixture. Air expands when it warms, so a part that is still hot from brazing will show a pressure rise that looks like a leak. A stabilisation time and a temperature-compensated sensor are worth more than a faster valve.
  • Decide pass/fail limits before delivery. Run known-good and known-bad samples during commissioning and store the limits in the recipe, otherwise the operator will adjust them by feel on the first difficult batch.

Frequently asked questions

What leak rate can the machine detect?

It depends on part volume and method. Pressure-decay instruments typically resolve a pressure change equivalent to a few tenths of a millilitre per minute on a small part; helium systems reach far lower rates but need tracer gas and a vacuum chamber. We size the sensor against the rate you need to detect.

Pressure decay or helium — which do I need?

Pressure decay is cheaper, needs only compressed air and is enough for most industrial parts. Helium is chosen when the allowable leak is very small, the part is flexible, or the test must be done at low differential pressure.

Can it run inside an automated line?

Yes. The bench can be supplied with pneumatic clamping, a PLC interface and digital I/O so a robot or conveyor can load and unload it. The test recipe and the result are passed over the same interface.
