Description

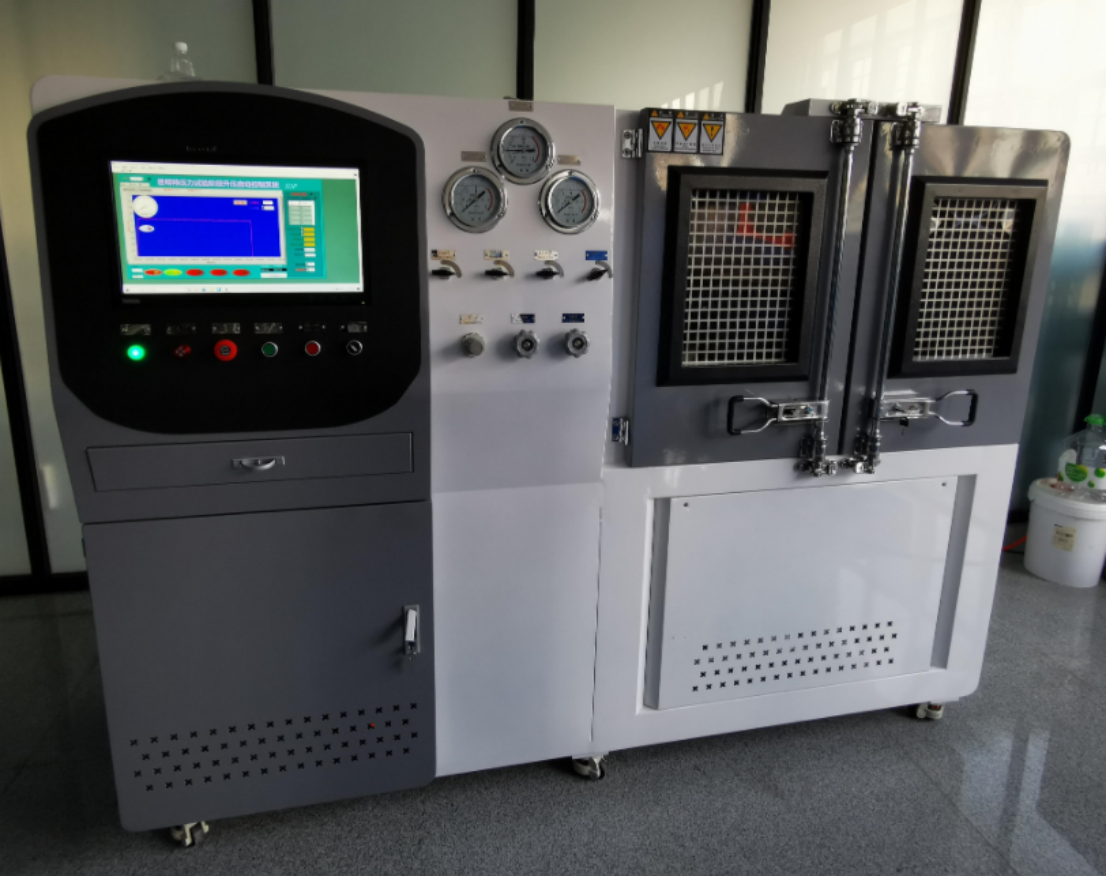

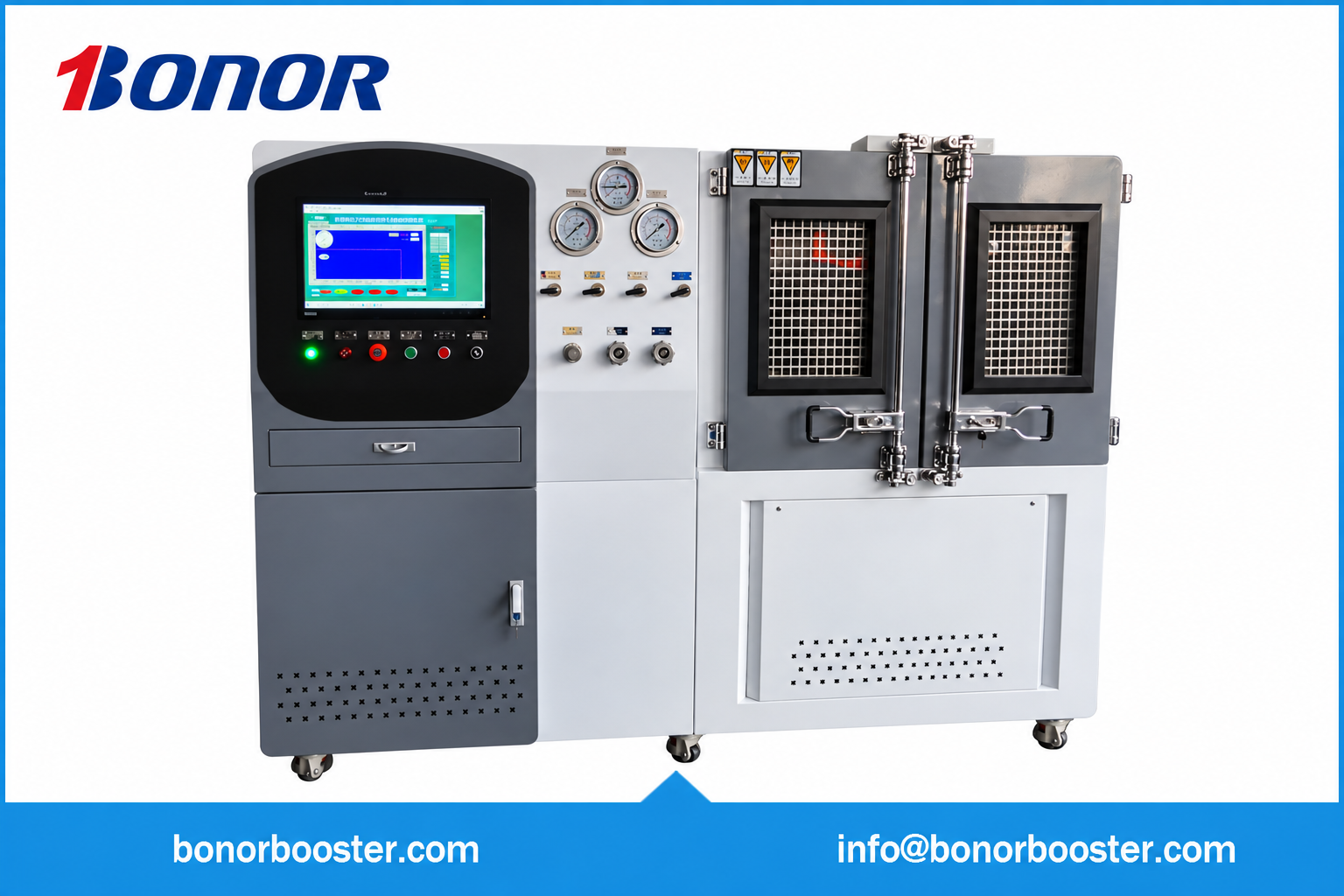

This gas pulse testing machine is mainly used for pressure fatigue pulse durability testing of pipe fittings, hoses, and valves; The equipment supports high-temperature gas pulse testing, which can accurately control the temperature of the medium and simulate the pulse fatigue life detection under the conditions of high-pressure gas inside the workpiece and external set environmental temperature.
Technical Parameters
1.Test Medium: Compressed air or other gases
2.Test Pressure: 0-0.8 MPa（0~11.60 psi ）(adjustable)
3.Pressure Control Accuracy: 0.01 MPa（0.145 psi）（ (subject to measuring range)
4.Gas Pulse Frequency: 5~20 times per minute (adjustable)
5.Pressure Waveform: Square wave / trapezoidal wave; pulse width customizable per client requirements
6.Medium Temperature: Ambient temperature ~ 260℃ (customizable)
 |
The pulse tester manufactured by Jinan Bonor is applicable to the factory delivery inspection of the following components:
1.Automotive Hoses Steering hose, brake hose, air conditioning hose, fuel hose, cooling water hose, heat dissipation hose, intercooler, radiator, oil cooler, water tank, evaporator, condenser, heater, air conditioning pipeline, coolant pipeline, heater hose, air filter hose, turbocharger system hose, engineering hydraulic hose. 1.Aviation hoses and manifolds 2.Other rigid pipes & pipe joints, as well as pulse tests for automotive brake pumps, radiators, oil coolers and cylinder blocks. |

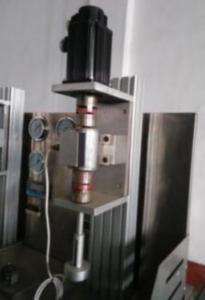

Single Lever Dual-Control Valve Core Life Testing MachineThis equipment is designed to test the service life of valve cores. It adopts touch screen control and is equipped with dedicated testing software. The system is capable of plotting pressure-time curve graphs, displaying all operational parameters in real time, and exporting test data into Excel format. Featuring reasonable structural layout, comprehensive functions and user-friendly operation.
|
 |
