Description

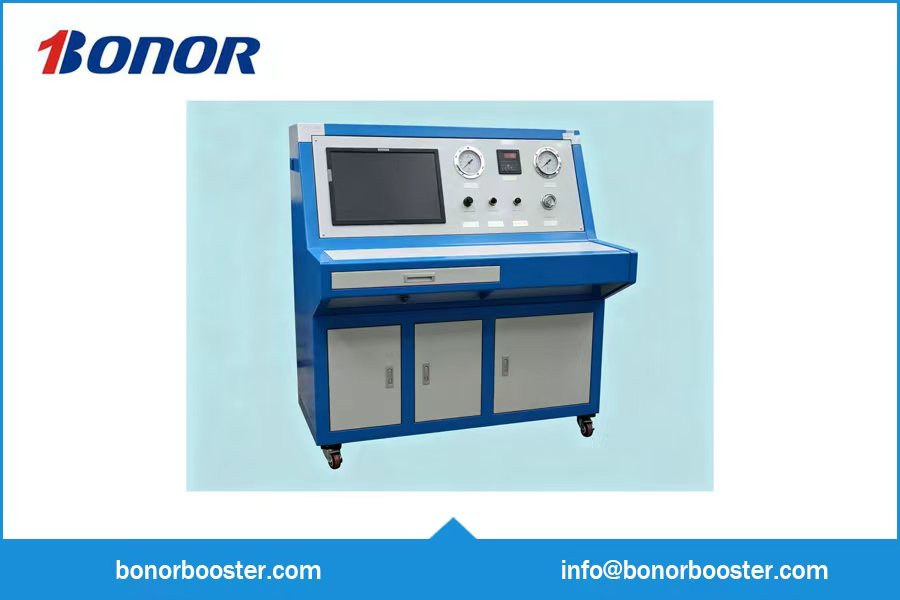

1. Application Scope of Pipe Pressure Resistance & Burst Test Machine

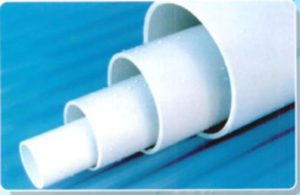

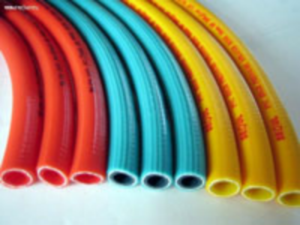

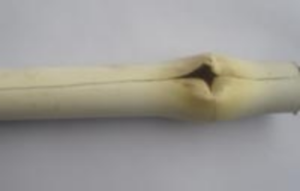

This pipe pressure burst tester is designed to measure the pressure failure duration under long-term constant internal pressure and constant temperature, as well as instantaneous burst pressure value of thermoplastic pipes and composite pipes. Applicable pipe types include PP-R, PP-B, PP-A, PE, PE-X, PVC, PVC-U, PVC-C, aluminum plastic composite pipes and other tubular products. It is essential testing equipment for plastic pipe manufacturers and inspection institutions, which can objectively reflect the product quality level of enterprises.

2. Compliant Test Standards

Conforms to two national standards:

  • GB/T 6111-2003: Test Method for Resistance to Internal Pressure of Thermoplastic Pipes for the Transport of Fluids
  • GB/T 15560-1995: Test Method for Hydraulic Instantaneous Burst and Pressure Resistance of Plastic Pipes for the Transport of Fluids

The system supports real-time pressure curve display, test report printing and experimental data storage via computer control.

3. Equipment Features of Pipe Pressure Resistance & Burst Test Machine

  1. Precise control of test pressure and temperature.
  2. Equipped with booster pump to realize stepless adjustment and accurate control of output pressure.
  3. All components adopt standard parts from world-famous brands with fully welding-free connections, featuring easy disassembly, convenient maintenance, safe operation and high efficiency.
  4. Multiple optional control modes, including manual control with digital pressure gauge display and computer automatic control.



4.Technical Parameters

1.Working Principle：The high-pressure pump generates high-pressure fluid according to set pressure values. The fluid is delivered to test specimens via high-pressure pipelines through the pressure control system to perform long-term static hydraulic tests on pipe workpieces.

2.Test Pressure：0~20MPa (customizable pressure range)
3.Pressure Control Accuracy：+2% of full scale upper limit, -1% of full scale lower limit
4.Pressure Resolution：0.1MPa
5.Sampling Frequency：1 time per second

6.Test Medium：Water
7.Operation Mode：Computer Control
8.Specimen Mounting Method：Thread connection + special tooling fixture
9.System Composition：Power system, circulation system, pressure control system, workpiece mounting device, computer control system
10.Application Scope：Testing for thermoplastic pipes, composite pipes and aluminum plastic composite pipes
